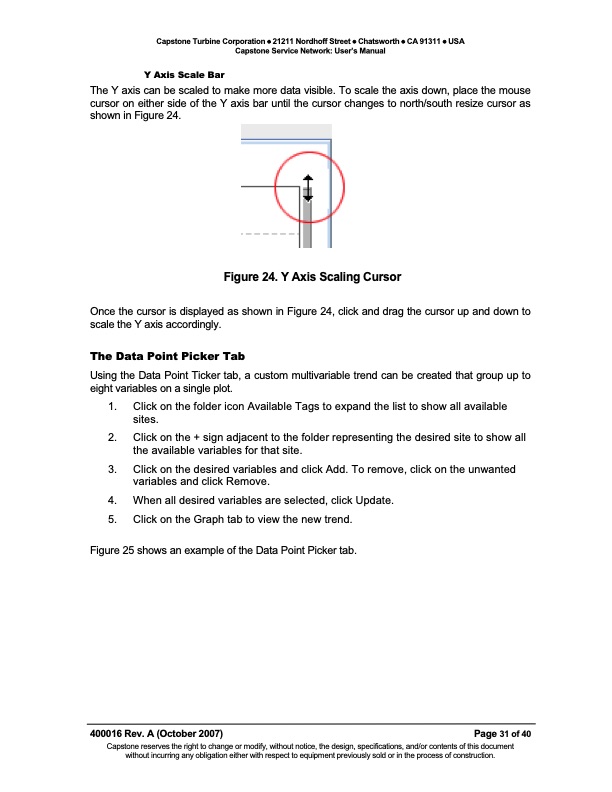

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual Y Axis Scale Bar The Y axis can be scaled to make more data visible. To scale the axis down, place the mouse cursor on either side of the Y axis bar until the cursor changes to north/south resize cursor as shown in Figure 24. Figure 24. Y Axis Scaling Cursor Once the cursor is displayed as shown in Figure 24, click and drag the cursor up and down to scale the Y axis accordingly. The Data Point Picker Tab Using the Data Point Ticker tab, a custom multivariable trend can be created that group up to eight variables on a single plot. 1. Click on the folder icon Available Tags to expand the list to show all available sites. 2. Click on the + sign adjacent to the folder representing the desired site to show all the available variables for that site. 3. Click on the desired variables and click Add. To remove, click on the unwanted variables and click Remove. 4. When all desired variables are selected, click Update. 5. Click on the Graph tab to view the new trend. Figure 25 shows an example of the Data Point Picker tab. 400016 Rev. A (October 2007) Page 31 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
