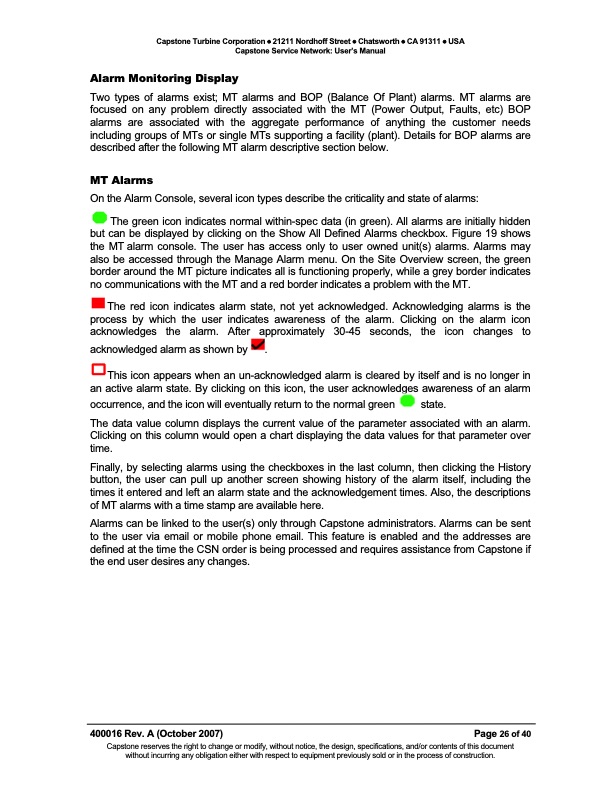

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual Alarm Monitoring Display Two types of alarms exist; MT alarms and BOP (Balance Of Plant) alarms. MT alarms are focused on any problem directly associated with the MT (Power Output, Faults, etc) BOP alarms are associated with the aggregate performance of anything the customer needs including groups of MTs or single MTs supporting a facility (plant). Details for BOP alarms are described after the following MT alarm descriptive section below. MT Alarms On the Alarm Console, several icon types describe the criticality and state of alarms: The green icon indicates normal within-spec data (in green). All alarms are initially hidden but can be displayed by clicking on the Show All Defined Alarms checkbox. Figure 19 shows the MT alarm console. The user has access only to user owned unit(s) alarms. Alarms may also be accessed through the Manage Alarm menu. On the Site Overview screen, the green border around the MT picture indicates all is functioning properly, while a grey border indicates no communications with the MT and a red border indicates a problem with the MT. The red icon indicates alarm state, not yet acknowledged. Acknowledging alarms is the process by which the user indicates awareness of the alarm. Clicking on the alarm icon acknowledges the alarm. After approximately 30-45 seconds, the icon changes to acknowledged alarm as shown by . This icon appears when an un-acknowledged alarm is cleared by itself and is no longer in an active alarm state. By clicking on this icon, the user acknowledges awareness of an alarm occurrence, and the icon will eventually return to the normal green state. The data value column displays the current value of the parameter associated with an alarm. Clicking on this column would open a chart displaying the data values for that parameter over time. Finally, by selecting alarms using the checkboxes in the last column, then clicking the History button, the user can pull up another screen showing history of the alarm itself, including the times it entered and left an alarm state and the acknowledgement times. Also, the descriptions of MT alarms with a time stamp are available here. Alarms can be linked to the user(s) only through Capstone administrators. Alarms can be sent to the user via email or mobile phone email. This feature is enabled and the addresses are defined at the time the CSN order is being processed and requires assistance from Capstone if the end user desires any changes. 400016 Rev. A (October 2007) Page 26 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
