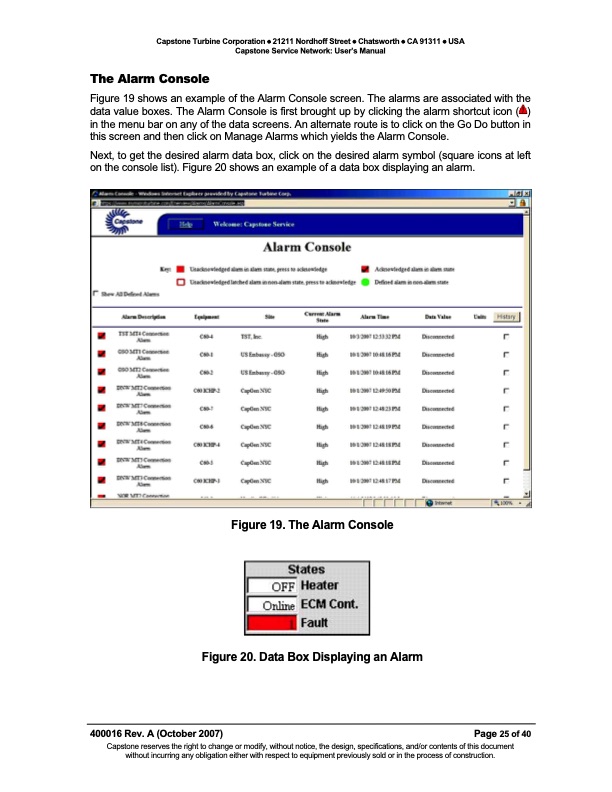

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual The Alarm Console Figure 19 shows an example of the Alarm Console screen. The alarms are associated with the data value boxes. The Alarm Console is first brought up by clicking the alarm shortcut icon ( in the menu bar on any of the data screens. An alternate route is to click on the Go Do button in this screen and then click on Manage Alarms which yields the Alarm Console. Next, to get the desired alarm data box, click on the desired alarm symbol (square icons at left on the console list). Figure 20 shows an example of a data box displaying an alarm. Figure 19. The Alarm Console Figure 20. Data Box Displaying an Alarm 400016 Rev. A (October 2007) Page 25 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. )PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
