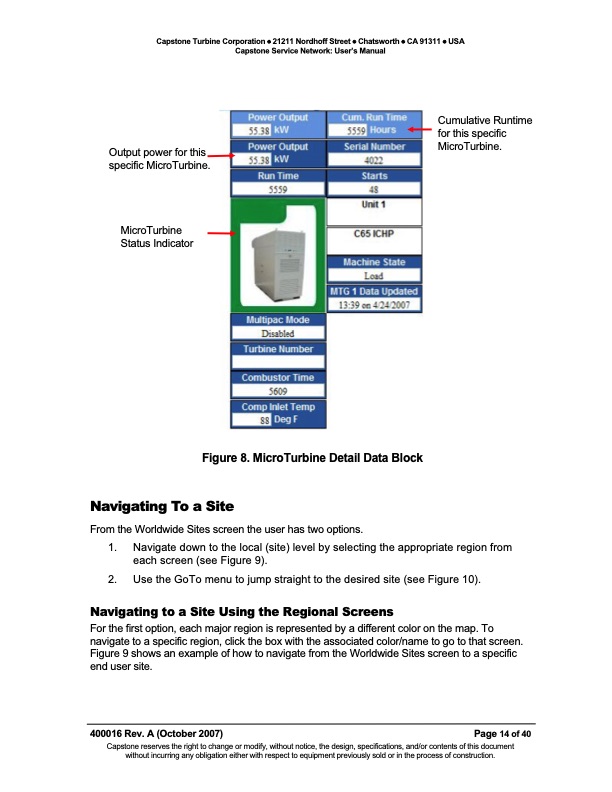

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual Output power for this specific MicroTurbine. MicroTurbine Status Indicator Cumulative Runtime for this specific MicroTurbine. Figure 8. MicroTurbine Detail Data Block Navigating To a Site From the Worldwide Sites screen the user has two options. 1. Navigate down to the local (site) level by selecting the appropriate region from each screen (see Figure 9). 2. Use the GoTo menu to jump straight to the desired site (see Figure 10). Navigating to a Site Using the Regional Screens For the first option, each major region is represented by a different color on the map. To navigate to a specific region, click the box with the associated color/name to go to that screen. Figure 9 shows an example of how to navigate from the Worldwide Sites screen to a specific end user site. 400016 Rev. A (October 2007) Page 14 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
