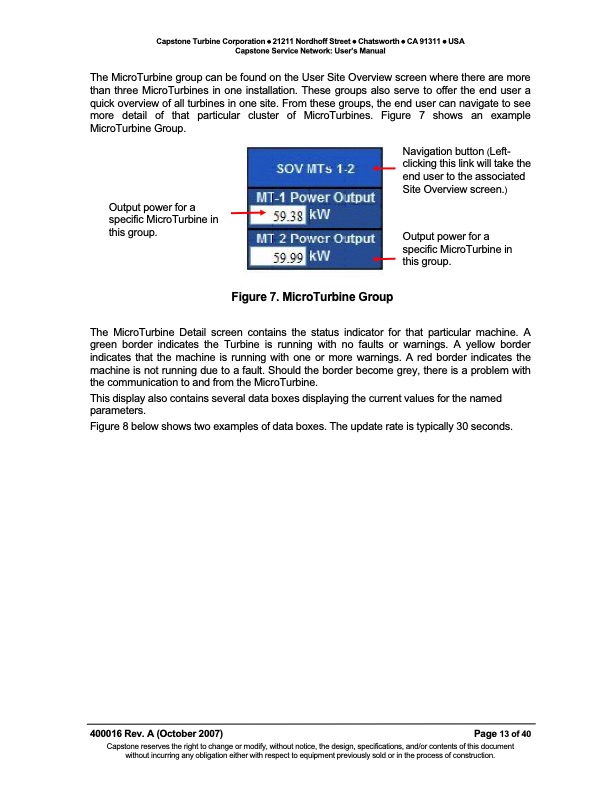

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual The MicroTurbine group can be found on the User Site Overview screen where there are more than three MicroTurbines in one installation. These groups also serve to offer the end user a quick overview of all turbines in one site. From these groups, the end user can navigate to see more detail of that particular cluster of MicroTurbines. Figure 7 shows an example MicroTurbine Group. Output power for a specific MicroTurbine in this group. Navigation button (Left- clicking this link will take the end user to the associated Site Overview screen.) Output power for a specific MicroTurbine in this group. Figure 7. MicroTurbine Group The MicroTurbine Detail screen contains the status indicator for that particular machine. A green border indicates the Turbine is running with no faults or warnings. A yellow border indicates that the machine is running with one or more warnings. A red border indicates the machine is not running due to a fault. Should the border become grey, there is a problem with the communication to and from the MicroTurbine. This display also contains several data boxes displaying the current values for the named parameters. Figure 8 below shows two examples of data boxes. The update rate is typically 30 seconds. 400016 Rev. A (October 2007) Page 13 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
