PDF Publication Title:
Text from PDF Page: 059

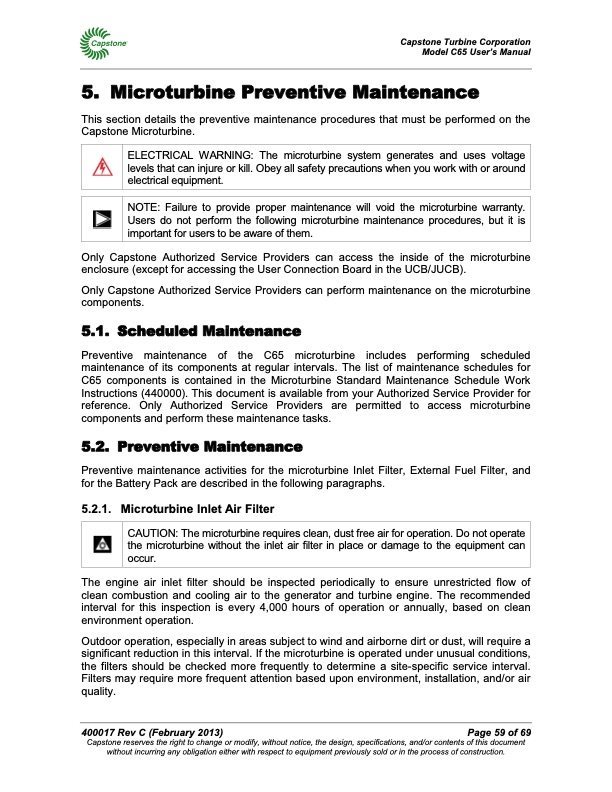

Capstone Turbine Corporation Model C65 User’s Manual 5. Microturbine Preventive Maintenance This section details the preventive maintenance procedures that must be performed on the Capstone Microturbine. Only Capstone Authorized Service Providers can access the inside of the microturbine enclosure (except for accessing the User Connection Board in the UCB/JUCB). Only Capstone Authorized Service Providers can perform maintenance on the microturbine components. 5.1. Scheduled Maintenance Preventive maintenance of the C65 microturbine includes performing scheduled maintenance of its components at regular intervals. The list of maintenance schedules for C65 components is contained in the Microturbine Standard Maintenance Schedule Work Instructions (440000). This document is available from your Authorized Service Provider for reference. Only Authorized Service Providers are permitted to access microturbine components and perform these maintenance tasks. 5.2. Preventive Maintenance Preventive maintenance activities for the microturbine Inlet Filter, External Fuel Filter, and for the Battery Pack are described in the following paragraphs. 5.2.1. Microturbine Inlet Air Filter The engine air inlet filter should be inspected periodically to ensure unrestricted flow of clean combustion and cooling air to the generator and turbine engine. The recommended interval for this inspection is every 4,000 hours of operation or annually, based on clean environment operation. Outdoor operation, especially in areas subject to wind and airborne dirt or dust, will require a significant reduction in this interval. If the microturbine is operated under unusual conditions, the filters should be checked more frequently to determine a site-specific service interval. Filters may require more frequent attention based upon environment, installation, and/or air quality. 400017 Rev C (February 2013) Page 59 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. ELECTRICAL WARNING: The microturbine system generates and uses voltage levels that can injure or kill. Obey all safety precautions when you work with or around electrical equipment. NOTE: Failure to provide proper maintenance will void the microturbine warranty. Users do not perform the following microturbine maintenance procedures, but it is important for users to be aware of them. CAUTION: The microturbine requires clean, dust free air for operation. Do not operate the microturbine without the inlet air filter in place or damage to the equipment can occur.PDF Image | Capstone MicroTurbine Model C65 User's Manual
PDF Search Title:
Capstone MicroTurbine Model C65 User's ManualOriginal File Name Searched:
400017C_UM_C65_IND_PKG.pdfDIY PDF Search: Google It | Yahoo | Bing
