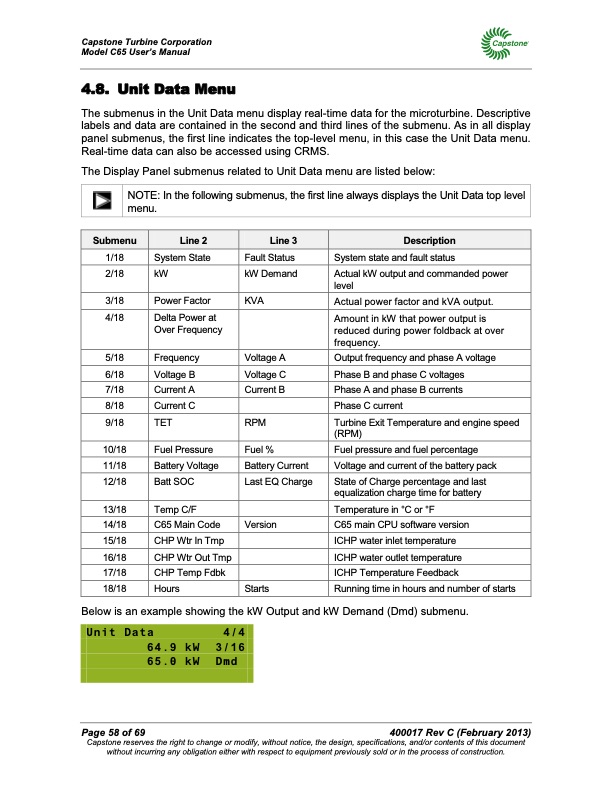

Text from PDF Page: 058
Capstone Turbine Corporation Model C65 User’s Manual 4.8. Unit Data Menu The submenus in the Unit Data menu display real-time data for the microturbine. Descriptive labels and data are contained in the second and third lines of the submenu. As in all display panel submenus, the first line indicates the top-level menu, in this case the Unit Data menu. Real-time data can also be accessed using CRMS. The Display Panel submenus related to Unit Data menu are listed below: NOTE: In the following submenus, the first line always displays the Unit Data top level menu. Submenu Line 2 Line 3 Description 1/18 System State 2/18 kW 3/18 Power Factor 4/18 Delta Power at Over Frequency 5/18 Frequency 6/18 Voltage B 7/18 Current A 8/18 Current C 9/18 TET 10/18 Fuel Pressure 11/18 Battery Voltage 12/18 Batt SOC 13/18 Temp C/F 14/18 C65 Main Code 15/18 CHP Wtr In Tmp 16/18 CHP Wtr Out Tmp 17/18 CHP Temp Fdbk 18/18 Hours Fault Status kW Demand KVA Voltage A Voltage C Current B RPM Fuel % Battery Current Last EQ Charge Version System state and fault status Actual kW output and commanded power level Actual power factor and kVA output. Amount in kW that power output is reduced during power foldback at over frequency. Output frequency and phase A voltage Phase B and phase C voltages Phase A and phase B currents Phase C current Turbine Exit Temperature and engine speed (RPM) Fuel pressure and fuel percentage Voltage and current of the battery pack State of Charge percentage and last equalization charge time for battery Temperature in °C or °F C65 main CPU software version ICHP water inlet temperature ICHP water outlet temperature ICHP Temperature Feedback Running time in hours and number of starts Starts Below is an example showing the kW Output and kW Demand (Dmd) submenu. Unit Data 4/4 64.9 kW 3/16 65.0 kW Dmd Page 58 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
