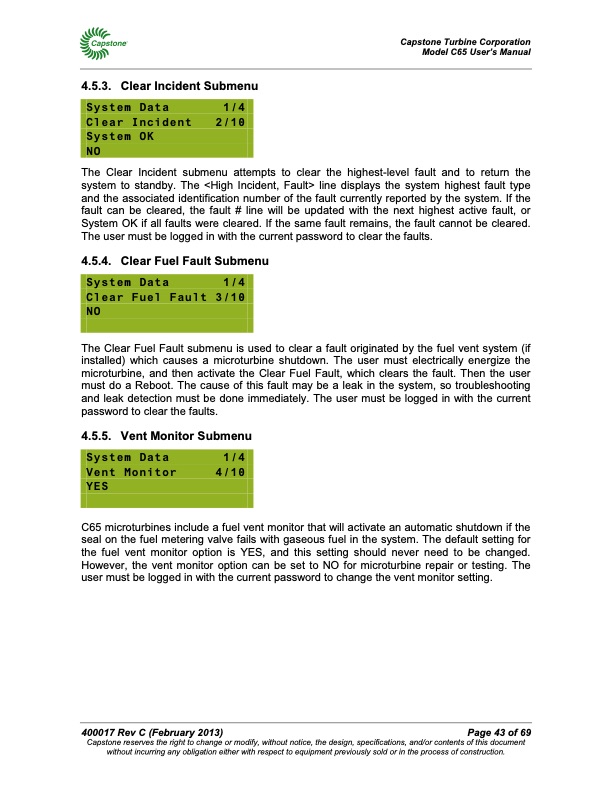

Text from PDF Page: 043

4.5.3. Clear Incident Submenu System Data 1/4 Clear Incident 2/10 System OK NO The Clear Incident submenu attempts to clear the highest-level fault and to return the system to standby. The line displays the system highest fault type and the associated identification number of the fault currently reported by the system. If the fault can be cleared, the fault # line will be updated with the next highest active fault, or System OK if all faults were cleared. If the same fault remains, the fault cannot be cleared. The user must be logged in with the current password to clear the faults. 4.5.4. Clear Fuel Fault Submenu The Clear Fuel Fault submenu is used to clear a fault originated by the fuel vent system (if installed) which causes a microturbine shutdown. The user must electrically energize the microturbine, and then activate the Clear Fuel Fault, which clears the fault. Then the user must do a Reboot. The cause of this fault may be a leak in the system, so troubleshooting and leak detection must be done immediately. The user must be logged in with the current password to clear the faults. 4.5.5. Vent Monitor Submenu C65 microturbines include a fuel vent monitor that will activate an automatic shutdown if the seal on the fuel metering valve fails with gaseous fuel in the system. The default setting for the fuel vent monitor option is YES, and this setting should never need to be changed. However, the vent monitor option can be set to NO for microturbine repair or testing. The user must be logged in with the current password to change the vent monitor setting. Capstone Turbine Corporation Model C65 User’s Manual System Data 1/4 Clear Fuel Fault 3/10 NO System Data 1/4 Vent Monitor 4/10 YES 400017 Rev C (February 2013) Page 43 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
