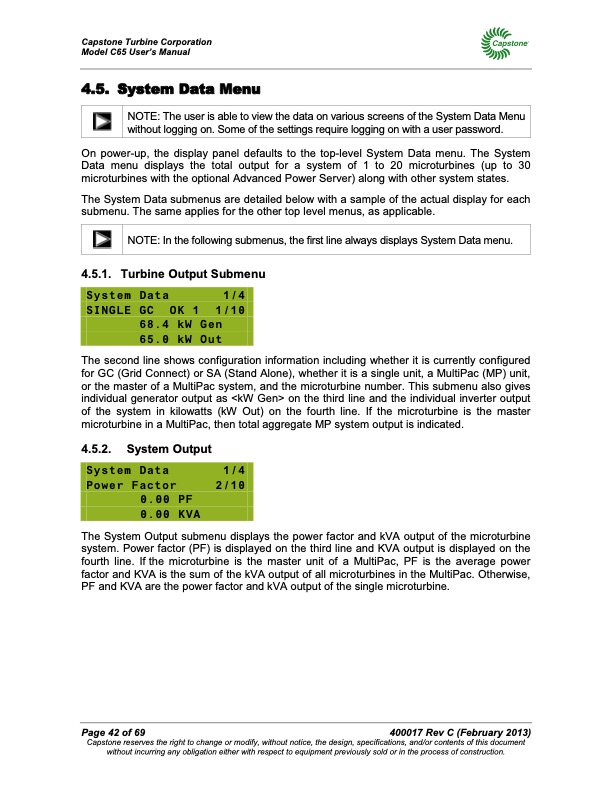

Text from PDF Page: 042

Capstone Turbine Corporation Model C65 User’s Manual 4.5. System Data Menu NOTE: The user is able to view the data on various screens of the System Data Menu without logging on. Some of the settings require logging on with a user password. On power-up, the display panel defaults to the top-level System Data menu. The System Data menu displays the total output for a system of 1 to 20 microturbines (up to 30 microturbines with the optional Advanced Power Server) along with other system states. The System Data submenus are detailed below with a sample of the actual display for each submenu. The same applies for the other top level menus, as applicable. NOTE: In the following submenus, the first line always displays System Data menu. 4.5.1. Turbine Output Submenu The second line shows configuration information including whether it is currently configured for GC (Grid Connect) or SA (Stand Alone), whether it is a single unit, a MultiPac (MP) unit, or the master of a MultiPac system, and the microturbine number. This submenu also gives individual generator output as on the third line and the individual inverter output of the system in kilowatts (kW Out) on the fourth line. If the microturbine is the master microturbine in a MultiPac, then total aggregate MP system output is indicated. 4.5.2. System Output The System Output submenu displays the power factor and kVA output of the microturbine system. Power factor (PF) is displayed on the third line and KVA output is displayed on the fourth line. If the microturbine is the master unit of a MultiPac, PF is the average power factor and KVA is the sum of the kVA output of all microturbines in the MultiPac. Otherwise, PF and KVA are the power factor and kVA output of the single microturbine. System Data 1/4 SINGLE GC OK 1 1/10 68.4 kW Gen 65.0 kW Out System Data 1/4 Power Factor 2/10 0.00 PF 0.00 KVA Page 42 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
