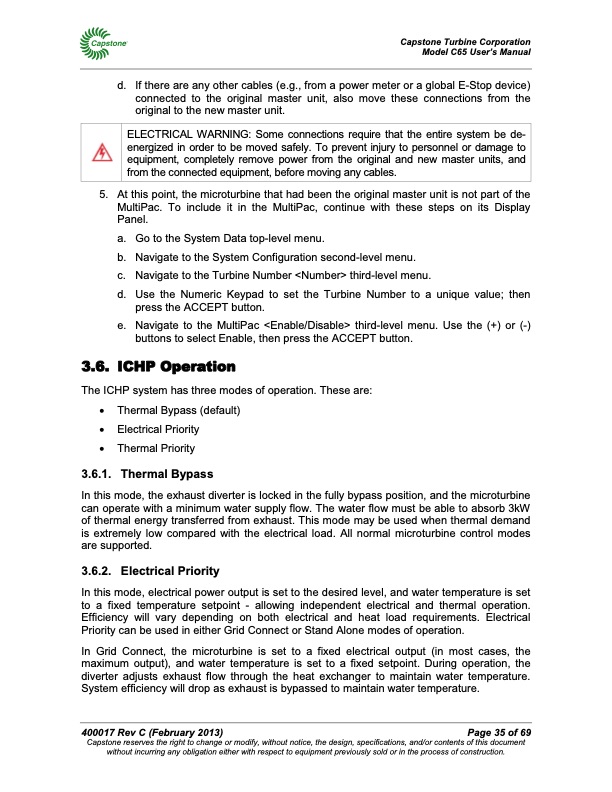

Capstone Turbine Corporation Model C65 User’s Manual d. If there are any other cables (e.g., from a power meter or a global E-Stop device) connected to the original master unit, also move these connections from the original to the new master unit. 5. At this point, the microturbine that had been the original master unit is not part of the MultiPac. To include it in the MultiPac, continue with these steps on its Display Panel. a. Go to the System Data top-level menu. b. Navigate to the System Configuration second-level menu. c. Navigate to the Turbine Number third-level menu. d. Use the Numeric Keypad to set the Turbine Number to a unique value; then press the ACCEPT button. e. Navigate to the MultiPac third-level menu. Use the (+) or (-) buttons to select Enable, then press the ACCEPT button. 3.6. ICHP Operation The ICHP system has three modes of operation. These are: • Thermal Bypass (default) • Electrical Priority • Thermal Priority 3.6.1. Thermal Bypass In this mode, the exhaust diverter is locked in the fully bypass position, and the microturbine can operate with a minimum water supply flow. The water flow must be able to absorb 3kW of thermal energy transferred from exhaust. This mode may be used when thermal demand is extremely low compared with the electrical load. All normal microturbine control modes are supported. 3.6.2. Electrical Priority In this mode, electrical power output is set to the desired level, and water temperature is set to a fixed temperature setpoint - allowing independent electrical and thermal operation. Efficiency will vary depending on both electrical and heat load requirements. Electrical Priority can be used in either Grid Connect or Stand Alone modes of operation. In Grid Connect, the microturbine is set to a fixed electrical output (in most cases, the maximum output), and water temperature is set to a fixed setpoint. During operation, the diverter adjusts exhaust flow through the heat exchanger to maintain water temperature. System efficiency will drop as exhaust is bypassed to maintain water temperature. 400017 Rev C (February 2013) Page 35 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. ELECTRICAL WARNING: Some connections require that the entire system be de- energized in order to be moved safely. To prevent injury to personnel or damage to equipment, completely remove power from the original and new master units, and from the connected equipment, before moving any cables.
