Text from PDF Page: 034

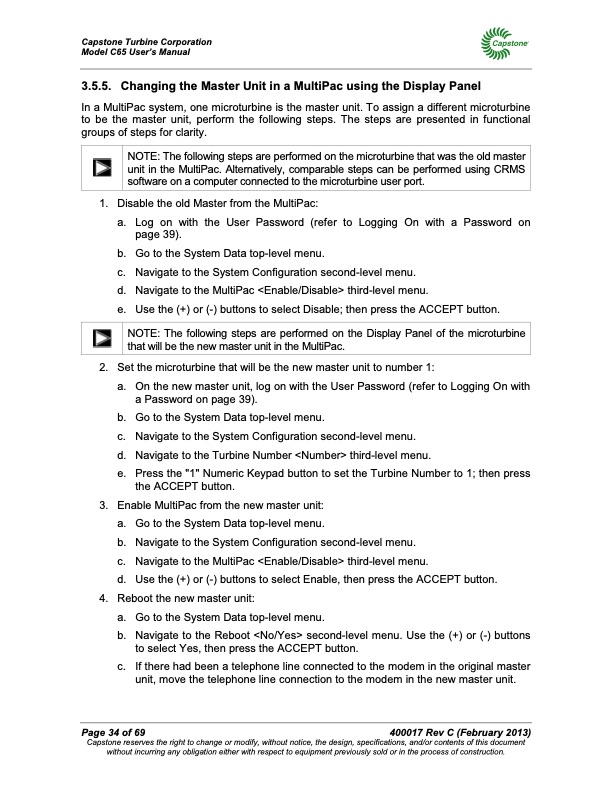

Capstone Turbine Corporation Model C65 User’s Manual 3.5.5. Changing the Master Unit in a MultiPac using the Display Panel In a MultiPac system, one microturbine is the master unit. To assign a different microturbine to be the master unit, perform the following steps. The steps are presented in functional groups of steps for clarity. 1. Disable the old Master from the MultiPac: a. Log on with the User Password (refer to Logging On with a Password on page 39). b. Go to the System Data top-level menu. c. Navigate to the System Configuration second-level menu. d. Navigate to the MultiPac third-level menu. e. Use the (+) or (-) buttons to select Disable; then press the ACCEPT button. NOTE: The following steps are performed on the Display Panel of the microturbine that will be the new master unit in the MultiPac. 2. Set the microturbine that will be the new master unit to number 1: a. On the new master unit, log on with the User Password (refer to Logging On with a Password on page 39). b. Go to the System Data top-level menu. c. Navigate to the System Configuration second-level menu. d. Navigate to the Turbine Number third-level menu. e. Press the "1" Numeric Keypad button to set the Turbine Number to 1; then press the ACCEPT button. 3. Enable MultiPac from the new master unit: a. Go to the System Data top-level menu. b. Navigate to the System Configuration second-level menu. c. Navigate to the MultiPac third-level menu. d. Use the (+) or (-) buttons to select Enable, then press the ACCEPT button. 4. Reboot the new master unit: a. Go to the System Data top-level menu. b. Navigate to the Reboot second-level menu. Use the (+) or (-) buttons to select Yes, then press the ACCEPT button. c. If there had been a telephone line connected to the modem in the original master unit, move the telephone line connection to the modem in the new master unit. Page 34 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE: The following steps are performed on the microturbine that was the old master unit in the MultiPac. Alternatively, comparable steps can be performed using CRMS software on a computer connected to the microturbine user port.
