Text from PDF Page: 047

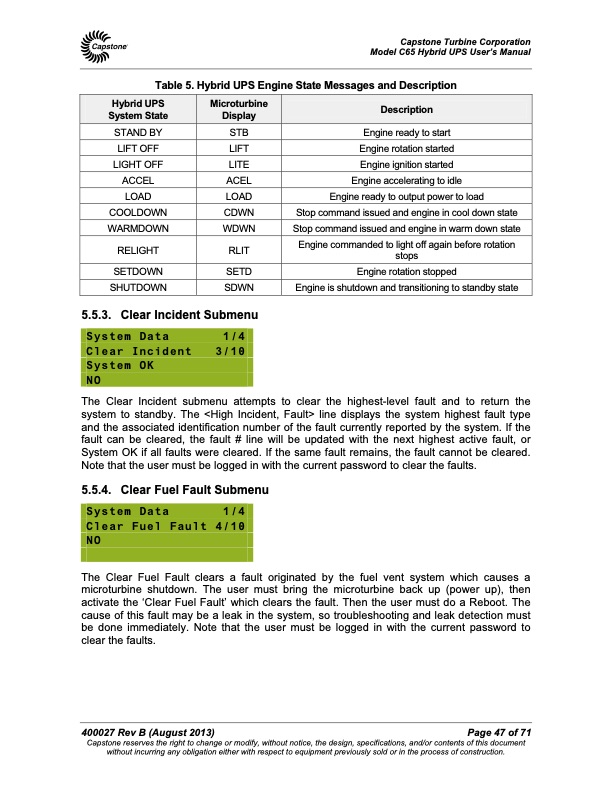

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual Table 5. Hybrid UPS Engine State Messages and Description Hybrid UPS System State Microturbine Display Description STAND BY STB LIFT OFF LIFT LIGHT OFF LITE ACCEL ACEL LOAD LOAD COOLDOWN CDWN WARMDOWN WDWN RELIGHT RLIT SETDOWN SETD SHUTDOWN SDWN 5.5.3. Clear Incident Submenu System Data 1/4 Clear Incident 3/10 System OK NO Engine ready to start Engine rotation started Engine ignition started Engine accelerating to idle Engine ready to output power to load Stop command issued and engine in cool down state Stop command issued and engine in warm down state Engine commanded to light off again before rotation stops Engine rotation stopped Engine is shutdown and transitioning to standby state The Clear Incident submenu attempts to clear the highest-level fault and to return the system to standby. The line displays the system highest fault type and the associated identification number of the fault currently reported by the system. If the fault can be cleared, the fault # line will be updated with the next highest active fault, or System OK if all faults were cleared. If the same fault remains, the fault cannot be cleared. Note that the user must be logged in with the current password to clear the faults. 5.5.4. Clear Fuel Fault Submenu System Data 1/4 Clear Fuel Fault 4/10 NO The Clear Fuel Fault clears a fault originated by the fuel vent system which causes a microturbine shutdown. The user must bring the microturbine back up (power up), then activate the ‘Clear Fuel Fault’ which clears the fault. Then the user must do a Reboot. The cause of this fault may be a leak in the system, so troubleshooting and leak detection must be done immediately. Note that the user must be logged in with the current password to clear the faults. 400027 Rev B (August 2013) Page 47 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
