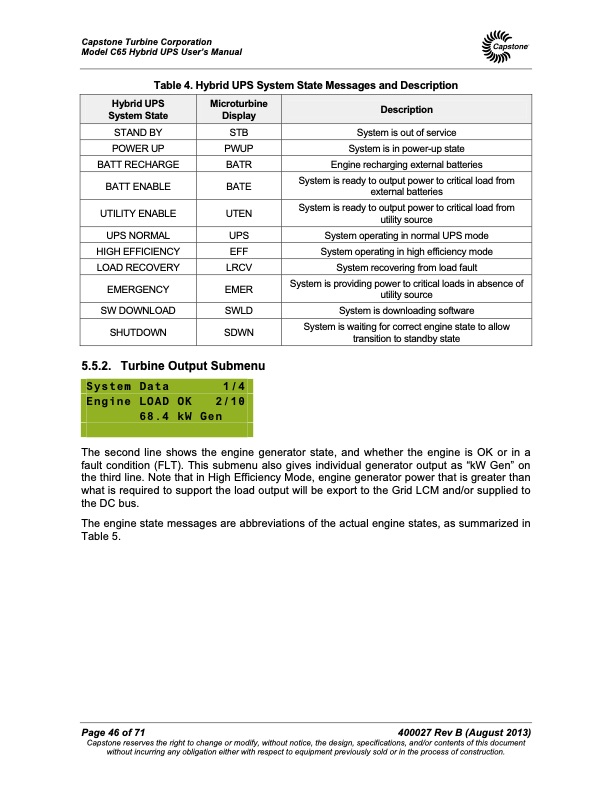

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual Table 4. Hybrid UPS System State Messages and Description Hybrid UPS System State Microturbine Display Description STAND BY POWER UP BATT RECHARGE STB System is out of service PWUP System is in power-up state BATR Engine recharging external batteries BATT ENABLE BATE UTILITY ENABLE UTEN System is ready to output power to critical load from external batteries System is ready to output power to critical load from utility source UPS NORMAL HIGH EFFICIENCY LOAD RECOVERY UPS System operating in normal UPS mode EFF System operating in high efficiency mode LRCV System recovering from load fault EMERGENCY EMER System is providing power to critical loads in absence of utility source SW DOWNLOAD SHUTDOWN SDWN 5.5.2. Turbine Output Submenu System Data 1/4 Engine LOAD OK 2/10 68.4 kW Gen SWLD System is downloading software System is waiting for correct engine state to allow transition to standby state The second line shows the engine generator state, and whether the engine is OK or in a fault condition (FLT). This submenu also gives individual generator output as “kW Gen” on the third line. Note that in High Efficiency Mode, engine generator power that is greater than what is required to support the load output will be export to the Grid LCM and/or supplied to the DC bus. The engine state messages are abbreviations of the actual engine states, as summarized in Table 5. Page 46 of 71 400027 Rev B (August 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
