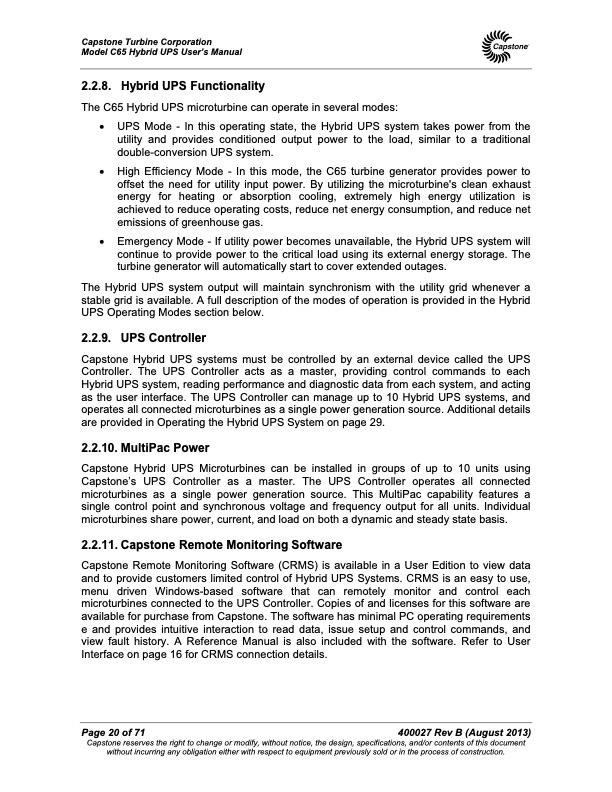

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 2.2.8. Hybrid UPS Functionality The C65 Hybrid UPS microturbine can operate in several modes: UPS Mode - In this operating state, the Hybrid UPS system takes power from the utility and provides conditioned output power to the load, similar to a traditional double-conversion UPS system. High Efficiency Mode - In this mode, the C65 turbine generator provides power to offset the need for utility input power. By utilizing the microturbine's clean exhaust energy for heating or absorption cooling, extremely high energy utilization is achieved to reduce operating costs, reduce net energy consumption, and reduce net emissions of greenhouse gas. Emergency Mode - If utility power becomes unavailable, the Hybrid UPS system will continue to provide power to the critical load using its external energy storage. The turbine generator will automatically start to cover extended outages. The Hybrid UPS system output will maintain synchronism with the utility grid whenever a stable grid is available. A full description of the modes of operation is provided in the Hybrid UPS Operating Modes section below. 2.2.9. UPS Controller Capstone Hybrid UPS systems must be controlled by an external device called the UPS Controller. The UPS Controller acts as a master, providing control commands to each Hybrid UPS system, reading performance and diagnostic data from each system, and acting as the user interface. The UPS Controller can manage up to 10 Hybrid UPS systems, and operates all connected microturbines as a single power generation source. Additional details are provided in Operating the Hybrid UPS System on page 29. 2.2.10. MultiPac Power Capstone Hybrid UPS Microturbines can be installed in groups of up to 10 units using Capstone’s UPS Controller as a master. The UPS Controller operates all connected microturbines as a single power generation source. This MultiPac capability features a single control point and synchronous voltage and frequency output for all units. Individual microturbines share power, current, and load on both a dynamic and steady state basis. 2.2.11. Capstone Remote Monitoring Software Capstone Remote Monitoring Software (CRMS) is available in a User Edition to view data and to provide customers limited control of Hybrid UPS Systems. CRMS is an easy to use, menu driven Windows-based software that can remotely monitor and control each microturbines connected to the UPS Controller. Copies of and licenses for this software are available for purchase from Capstone. The software has minimal PC operating requirements e and provides intuitive interaction to read data, issue setup and control commands, and view fault history. A Reference Manual is also included with the software. Refer to User Interface on page 16 for CRMS connection details. Page 20 of 71 400027 Rev B (August 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
