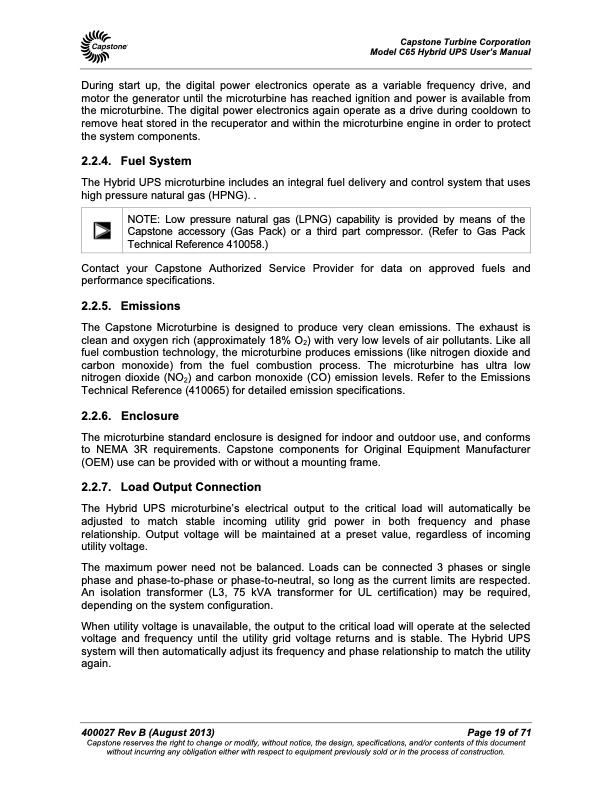

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual During start up, the digital power electronics operate as a variable frequency drive, and motor the generator until the microturbine has reached ignition and power is available from the microturbine. The digital power electronics again operate as a drive during cooldown to remove heat stored in the recuperator and within the microturbine engine in order to protect the system components. 2.2.4. Fuel System The Hybrid UPS microturbine includes an integral fuel delivery and control system that uses high pressure natural gas (HPNG). . Contact your Capstone Authorized Service Provider for data on approved fuels and performance specifications. 2.2.5. Emissions The Capstone Microturbine is designed to produce very clean emissions. The exhaust is clean and oxygen rich (approximately 18% O2) with very low levels of air pollutants. Like all fuel combustion technology, the microturbine produces emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. The microturbine has ultra low nitrogen dioxide (NO2) and carbon monoxide (CO) emission levels. Refer to the Emissions Technical Reference (410065) for detailed emission specifications. 2.2.6. Enclosure The microturbine standard enclosure is designed for indoor and outdoor use, and conforms to NEMA 3R requirements. Capstone components for Original Equipment Manufacturer (OEM) use can be provided with or without a mounting frame. 2.2.7. Load Output Connection The Hybrid UPS microturbine’s electrical output to the critical load will automatically be adjusted to match stable incoming utility grid power in both frequency and phase relationship. Output voltage will be maintained at a preset value, regardless of incoming utility voltage. The maximum power need not be balanced. Loads can be connected 3 phases or single phase and phase-to-phase or phase-to-neutral, so long as the current limits are respected. An isolation transformer (L3, 75 kVA transformer for UL certification) may be required, depending on the system configuration. When utility voltage is unavailable, the output to the critical load will operate at the selected voltage and frequency until the utility grid voltage returns and is stable. The Hybrid UPS system will then automatically adjust its frequency and phase relationship to match the utility again. 400027 Rev B (August 2013) Page 19 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE: Low pressure natural gas (LPNG) capability is provided by means of the Capstone accessory (Gas Pack) or a third part compressor. (Refer to Gas Pack Technical Reference 410058.)PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
