PDF Publication Title:
Text from PDF Page: 014

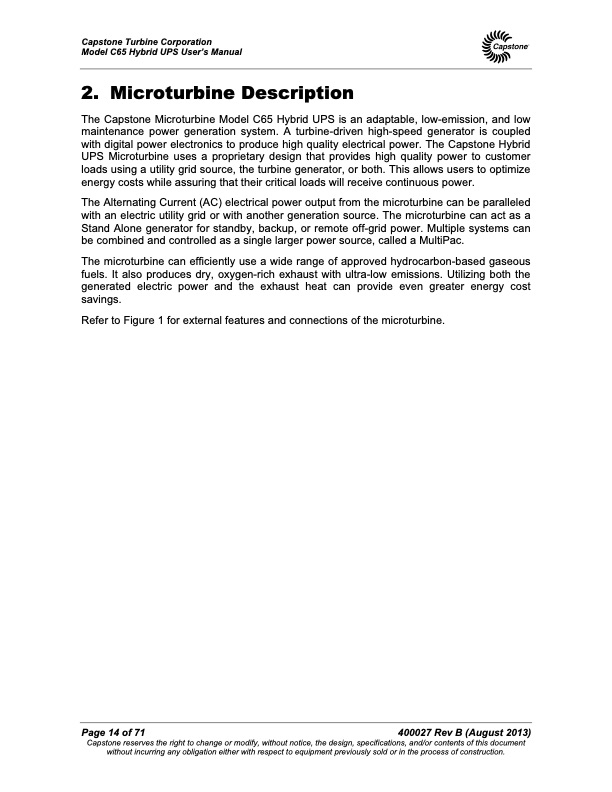

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 2. Microturbine Description The Capstone Microturbine Model C65 Hybrid UPS is an adaptable, low-emission, and low maintenance power generation system. A turbine-driven high-speed generator is coupled with digital power electronics to produce high quality electrical power. The Capstone Hybrid UPS Microturbine uses a proprietary design that provides high quality power to customer loads using a utility grid source, the turbine generator, or both. This allows users to optimize energy costs while assuring that their critical loads will receive continuous power. The Alternating Current (AC) electrical power output from the microturbine can be paralleled with an electric utility grid or with another generation source. The microturbine can act as a Stand Alone generator for standby, backup, or remote off-grid power. Multiple systems can be combined and controlled as a single larger power source, called a MultiPac. The microturbine can efficiently use a wide range of approved hydrocarbon-based gaseous fuels. It also produces dry, oxygen-rich exhaust with ultra-low emissions. Utilizing both the generated electric power and the exhaust heat can provide even greater energy cost savings. Refer to Figure 1 for external features and connections of the microturbine. Page 14 of 71 400027 Rev B (August 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
PDF Search Title:
Capstone MicroTurbine Model C65 Hybrid UPS User's ManualOriginal File Name Searched:
400027B_UM_C65_HYBRID_UPS.pdfDIY PDF Search: Google It | Yahoo | Bing
