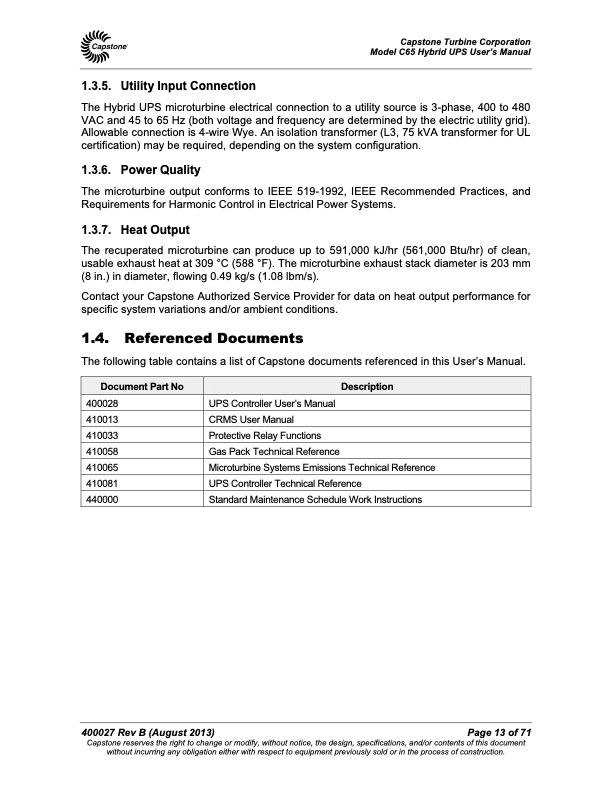

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 1.3.5. Utility Input Connection The Hybrid UPS microturbine electrical connection to a utility source is 3-phase, 400 to 480 VAC and 45 to 65 Hz (both voltage and frequency are determined by the electric utility grid). Allowable connection is 4-wire Wye. An isolation transformer (L3, 75 kVA transformer for UL certification) may be required, depending on the system configuration. 1.3.6. Power Quality The microturbine output conforms to IEEE 519-1992, IEEE Recommended Practices, and Requirements for Harmonic Control in Electrical Power Systems. 1.3.7. Heat Output The recuperated microturbine can produce up to 591,000 kJ/hr (561,000 Btu/hr) of clean, usable exhaust heat at 309 °C (588 °F). The microturbine exhaust stack diameter is 203 mm (8 in.) in diameter, flowing 0.49 kg/s (1.08 lbm/s). Contact your Capstone Authorized Service Provider for data on heat output performance for specific system variations and/or ambient conditions. 1.4. Referenced Documents The following table contains a list of Capstone documents referenced in this User’s Manual. Document Part No Description 400028 UPS Controller User’s Manual 410013 CRMS User Manual 410033 Protective Relay Functions 410058 Gas Pack Technical Reference 410065 Microturbine Systems Emissions Technical Reference 410081 UPS Controller Technical Reference 440000 Standard Maintenance Schedule Work Instructions 400027 Rev B (August 2013) Page 13 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
