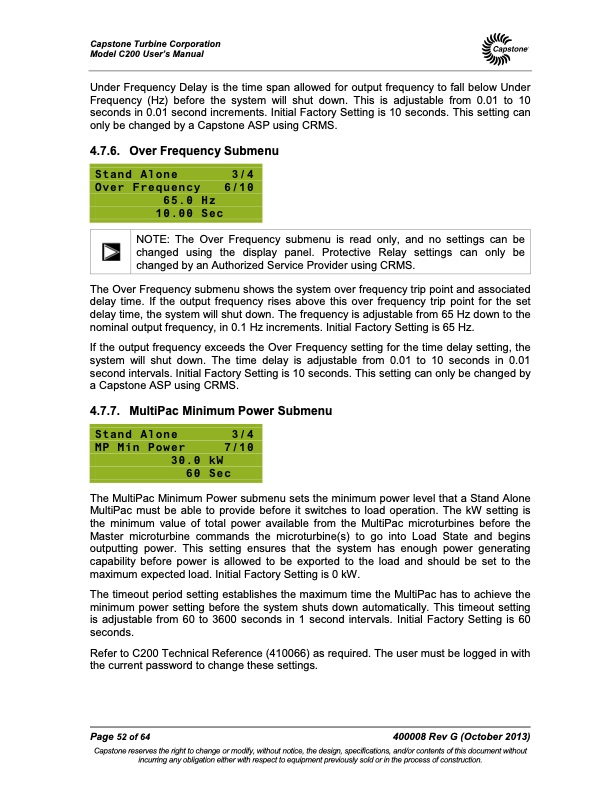

Capstone Turbine Corporation Model C200 User’s Manual Under Frequency Delay is the time span allowed for output frequency to fall below Under Frequency (Hz) before the system will shut down. This is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is 10 seconds. This setting can only be changed by a Capstone ASP using CRMS. 4.7.6. Over Frequency Submenu The Over Frequency submenu shows the system over frequency trip point and associated delay time. If the output frequency rises above this over frequency trip point for the set delay time, the system will shut down. The frequency is adjustable from 65 Hz down to the nominal output frequency, in 0.1 Hz increments. Initial Factory Setting is 65 Hz. If the output frequency exceeds the Over Frequency setting for the time delay setting, the system will shut down. The time delay is adjustable from 0.01 to 10 seconds in 0.01 second intervals. Initial Factory Setting is 10 seconds. This setting can only be changed by a Capstone ASP using CRMS. 4.7.7. MultiPac Minimum Power Submenu The MultiPac Minimum Power submenu sets the minimum power level that a Stand Alone MultiPac must be able to provide before it switches to load operation. The kW setting is the minimum value of total power available from the MultiPac microturbines before the Master microturbine commands the microturbine(s) to go into Load State and begins outputting power. This setting ensures that the system has enough power generating capability before power is allowed to be exported to the load and should be set to the maximum expected load. Initial Factory Setting is 0 kW. The timeout period setting establishes the maximum time the MultiPac has to achieve the minimum power setting before the system shuts down automatically. This timeout setting is adjustable from 60 to 3600 seconds in 1 second intervals. Initial Factory Setting is 60 seconds. Refer to C200 Technical Reference (410066) as required. The user must be logged in with the current password to change these settings. Page 52 of 64 400008 Rev G (October 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Stand Alone 3/4 Over Frequency 6/10 65.0 Hz 10.00 Sec NOTE: The Over Frequency submenu is read only, and no settings can be changed using the display panel. Protective Relay settings can only be changed by an Authorized Service Provider using CRMS. Stand Alone 3/4 MP Min Power 7/10 30.0 kW 60 SecPDF Image | Capstone MicroTurbine Model C200 User's Manual
