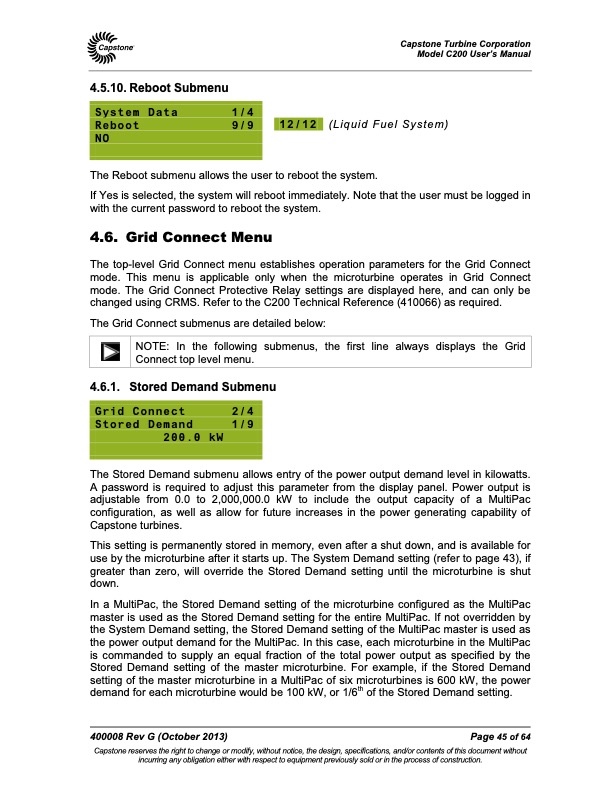

4.5.10. Reboot Submenu Capstone Turbine Corporation Model C200 User’s Manual System Data 1/4 Reboot 9/9 NO 12/12 (Liquid Fuel System) The Reboot submenu allows the user to reboot the system. If Yes is selected, the system will reboot immediately. Note that the user must be logged in with the current password to reboot the system. 4.6. Grid Connect Menu The top-level Grid Connect menu establishes operation parameters for the Grid Connect mode. This menu is applicable only when the microturbine operates in Grid Connect mode. The Grid Connect Protective Relay settings are displayed here, and can only be changed using CRMS. Refer to the C200 Technical Reference (410066) as required. The Grid Connect submenus are detailed below: NOTE: In the following submenus, the first line always displays the Grid Connect top level menu. 4.6.1. Stored Demand Submenu The Stored Demand submenu allows entry of the power output demand level in kilowatts. A password is required to adjust this parameter from the display panel. Power output is adjustable from 0.0 to 2,000,000.0 kW to include the output capacity of a MultiPac configuration, as well as allow for future increases in the power generating capability of Capstone turbines. This setting is permanently stored in memory, even after a shut down, and is available for use by the microturbine after it starts up. The System Demand setting (refer to page 43), if greater than zero, will override the Stored Demand setting until the microturbine is shut down. In a MultiPac, the Stored Demand setting of the microturbine configured as the MultiPac master is used as the Stored Demand setting for the entire MultiPac. If not overridden by the System Demand setting, the Stored Demand setting of the MultiPac master is used as the power output demand for the MultiPac. In this case, each microturbine in the MultiPac is commanded to supply an equal fraction of the total power output as specified by the Stored Demand setting of the master microturbine. For example, if the Stored Demand setting of the master microturbine in a MultiPac of six microturbines is 600 kW, the power demand for each microturbine would be 100 kW, or 1/6th of the Stored Demand setting. 400008 Rev G (October 2013) Page 45 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Grid Connect 2/4 Stored Demand 1/9 200.0 kWPDF Image | Capstone MicroTurbine Model C200 User's Manual
