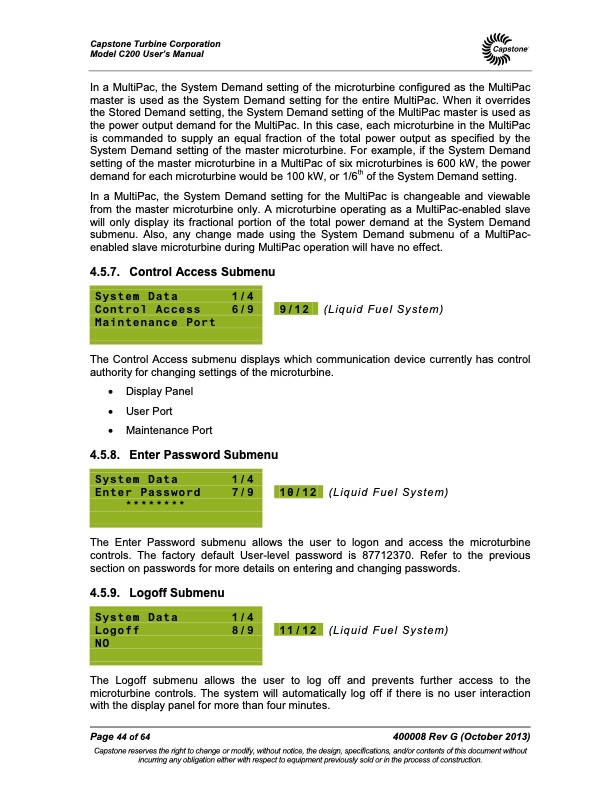

Capstone Turbine Corporation Model C200 User’s Manual In a MultiPac, the System Demand setting of the microturbine configured as the MultiPac master is used as the System Demand setting for the entire MultiPac. When it overrides the Stored Demand setting, the System Demand setting of the MultiPac master is used as the power output demand for the MultiPac. In this case, each microturbine in the MultiPac is commanded to supply an equal fraction of the total power output as specified by the System Demand setting of the master microturbine. For example, if the System Demand setting of the master microturbine in a MultiPac of six microturbines is 600 kW, the power demand for each microturbine would be 100 kW, or 1/6th of the System Demand setting. In a MultiPac, the System Demand setting for the MultiPac is changeable and viewable from the master microturbine only. A microturbine operating as a MultiPac-enabled slave will only display its fractional portion of the total power demand at the System Demand submenu. Also, any change made using the System Demand submenu of a MultiPac- enabled slave microturbine during MultiPac operation will have no effect. 4.5.7. Control Access Submenu 9/12 (Liquid Fuel System) The Control Access submenu displays which communication device currently has control authority for changing settings of the microturbine. • Display Panel • User Port • Maintenance Port 4.5.8. Enter Password Submenu 10/12 (Liquid Fuel System) The Enter Password submenu allows the user to logon and access the microturbine controls. The factory default User-level password is 87712370. Refer to the previous section on passwords for more details on entering and changing passwords. 4.5.9. Logoff Submenu 11/12 (Liquid Fuel System) The Logoff submenu allows the user to log off and prevents further access to the microturbine controls. The system will automatically log off if there is no user interaction with the display panel for more than four minutes. Page 44 of 64 400008 Rev G (October 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. System Data 1/4 Control Access 6/9 Maintenance Port System Data 1/4 Enter Password 7/9 ******** System Data 1/4 Logoff 8/9 NOPDF Image | Capstone MicroTurbine Model C200 User's Manual
