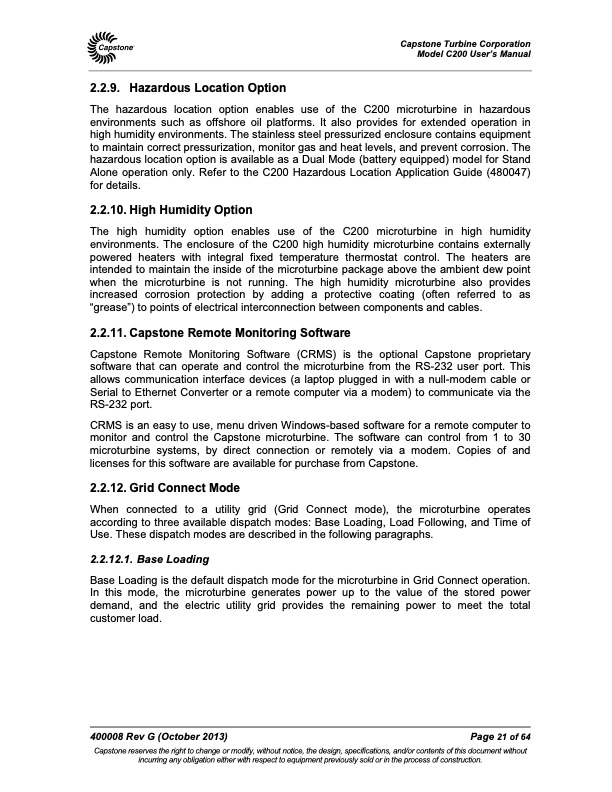

Text from PDF Page: 021
The hazardous location option enables use of the C200 microturbine in hazardous environments such as offshore oil platforms. It also provides for extended operation in high humidity environments. The stainless steel pressurized enclosure contains equipment to maintain correct pressurization, monitor gas and heat levels, and prevent corrosion. The hazardous location option is available as a Dual Mode (battery equipped) model for Stand Alone operation only. Refer to the C200 Hazardous Location Application Guide (480047) for details. 2.2.10. High Humidity Option The high humidity option enables use of the C200 microturbine in high humidity environments. The enclosure of the C200 high humidity microturbine contains externally powered heaters with integral fixed temperature thermostat control. The heaters are intended to maintain the inside of the microturbine package above the ambient dew point when the microturbine is not running. The high humidity microturbine also provides increased corrosion protection by adding a protective coating (often referred to as “grease”) to points of electrical interconnection between components and cables. 2.2.11. Capstone Remote Monitoring Software Capstone Remote Monitoring Software (CRMS) is the optional Capstone proprietary software that can operate and control the microturbine from the RS-232 user port. This allows communication interface devices (a laptop plugged in with a null-modem cable or Serial to Ethernet Converter or a remote computer via a modem) to communicate via the RS-232 port. CRMS is an easy to use, menu driven Windows-based software for a remote computer to monitor and control the Capstone microturbine. The software can control from 1 to 30 microturbine systems, by direct connection or remotely via a modem. Copies of and licenses for this software are available for purchase from Capstone. 2.2.12. Grid Connect Mode When connected to a utility grid (Grid Connect mode), the microturbine operates according to three available dispatch modes: Base Loading, Load Following, and Time of Use. These dispatch modes are described in the following paragraphs. 2.2.12.1. Base Loading Base Loading is the default dispatch mode for the microturbine in Grid Connect operation. In this mode, the microturbine generates power up to the value of the stored power demand, and the electric utility grid provides the remaining power to meet the total customer load. 400008 Rev G (October 2013) Page 21 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C200 User’s Manual 2.2.9. Hazardous Location OptionPDF Image | Capstone MicroTurbine Model C200 User's Manual
