ACTIVE OPEN/CLOSED
ACTIVE OPEN (Circuit) (Normally closed) relay contact opens when function is true. Current does not flow until the signal circuit is active.
ACTIVE CLOSED (Circuit) (Normally open) relay contact closed when function is true. Signal current is raised or lowered in the circuit.
For example, if relay 1 is programmed to show the stand-by condition and it is programmed active open, then the relay will be open (high impedance) when the unit is in stand-by. In all other states the relay will be closed (low impedance). If relay 1 is programmed to show the stand-by condition and it is programmed active closed then the relay will be closed (low impedance) when the unit is in stand-by. In all other states the relay will be open (high impedance).
STANDBY: When the system is in the Standby state, the Standby relay contacts will be either open or closed depending on this setting.
RUN: Determines whether the Run relay contacts are open or closed when the unit is in the Run state.
LOAD: Allows the user to choose the state of the Load relay contacts (open or closed) when the system is in the Load state.
FAULT: When a fault is active, this setting determines whether the Fault relay contacts will be open or closed when the system active faults, faults a severity level greater than a warning.
STANDALONE: If the unit is in the StandAlone mode, the StandAlone relay contact logic (either open or closed) is determined by this setting.
STANDALONE LOAD: If the unit is in the SA mode and in the Load State, this setting determines whether the SA Load relay contacts will be open or closed.
DISABLE: When the system is in the disable state, the contacts will be either open or closed depending in the setting.
PRELIMINARY

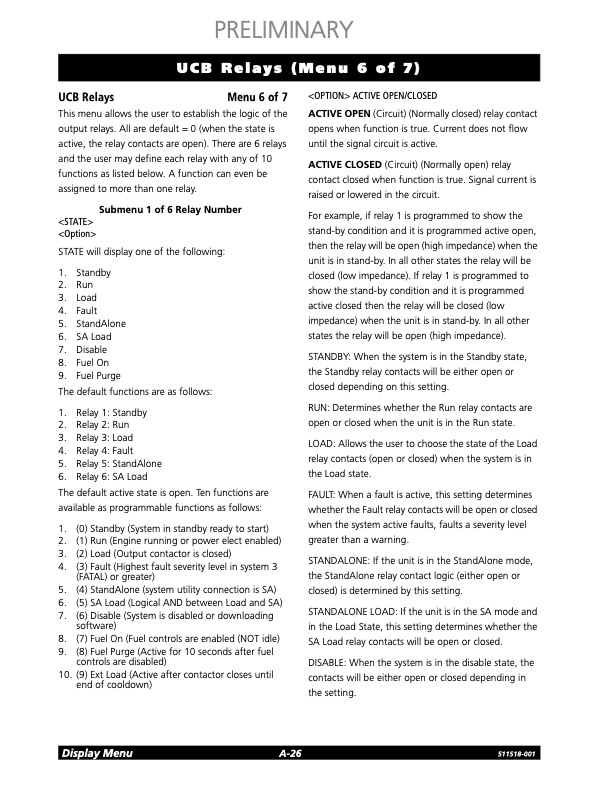

UCB Relays (Menu 6 of 7)
Display Menu A-26
511518-001
