Text from PDF Page: 025

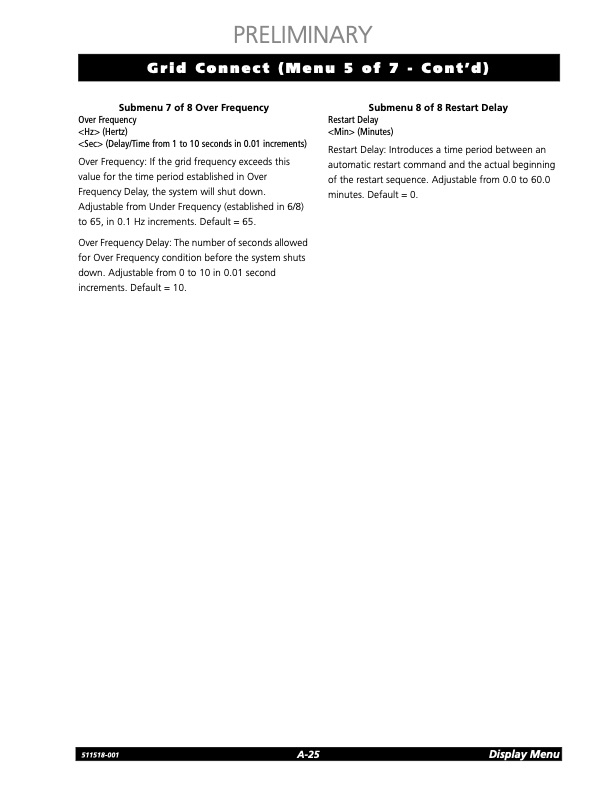

PRELIMINARY Grid Connect (Menu 5 of 7 - Cont’d) Submenu 7 of 8 Over Frequency Over Frequency (Hertz) (Delay/Time from 1 to 10 seconds in 0.01 increments) Over Frequency: If the grid frequency exceeds this value for the time period established in Over Frequency Delay, the system will shut down. Adjustable from Under Frequency (established in 6/8) to 65, in 0.1 Hz increments. Default = 65. Over Frequency Delay: The number of seconds allowed for Over Frequency condition before the system shuts down. Adjustable from 0 to 10 in 0.01 second increments. Default = 10. Submenu 8 of 8 Restart Delay Restart Delay (Minutes) Restart Delay: Introduces a time period between an automatic restart command and the actual beginning of the restart sequence. Adjustable from 0.0 to 60.0 minutes. Default = 0. 511518-001 A-25 Display Menu
