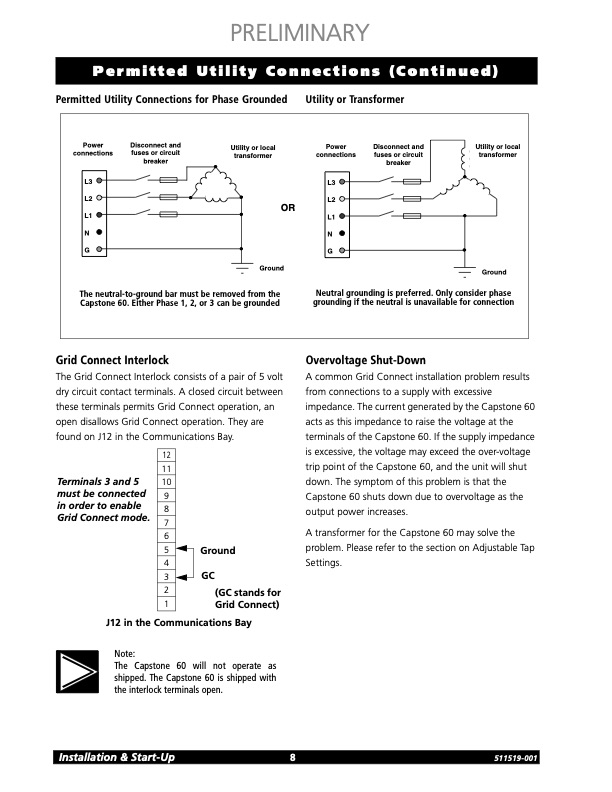

PRELIMINARY Permitted Utility Connections (Continued) Permitted Utility Connections for Phase Grounded Utility or Transformer Power connections Disconnect and fuses or circuit breaker Utility or local transformer Ground Power connections Disconnect and fuses or circuit breaker Utility or local transformer Ground L3 L2 L1 N G L3 L2 L1 N G OR The neutral-to-ground bar must be removed from the Neutral grounding is preferred. Only consider phase Capstone 60. Either Phase 1, 2, or 3 can be grounded grounding if the neutral is unavailable for connection Grid Connect Interlock The Grid Connect Interlock consists of a pair of 5 volt dry circuit contact terminals. A closed circuit between these terminals permits Grid Connect operation, an open disallows Grid Connect operation. They are found on J12 in the Communications Bay. 12 11 Terminals 3 and 5 10 Overvoltage Shut-Down A common Grid Connect installation problem results from connections to a supply with excessive impedance. The current generated by the Capstone 60 acts as this impedance to raise the voltage at the terminals of the Capstone 60. If the supply impedance is excessive, the voltage may exceed the over-voltage trip point of the Capstone 60, and the unit will shut down. The symptom of this problem is that the Capstone 60 shuts down due to overvoltage as the output power increases. A transformer for the Capstone 60 may solve the problem. Please refer to the section on Adjustable Tap Settings. must be connected in order to enable Grid Connect mode. 1 9 8 7 6 5 4 3 GC 2 J12 in the Communications Bay Note: The Capstone 60 will not operate as shipped. The Capstone 60 is shipped with the interlock terminals open. Ground (GC stands for Grid Connect) Installation & Start-Up 8 511519-001PDF Image | C60 Mech
