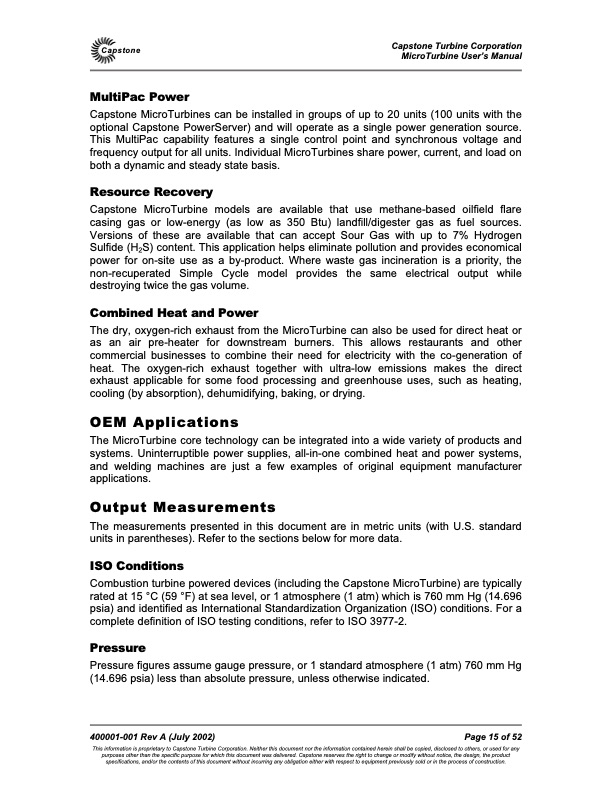

Capstone MultiPac Power Capstone Turbine Corporation MicroTurbine Userís Manual Capstone MicroTurbines can be installed in groups of up to 20 units (100 units with the optional Capstone PowerServer) and will operate as a single power generation source. This MultiPac capability features a single control point and synchronous voltage and frequency output for all units. Individual MicroTurbines share power, current, and load on both a dynamic and steady state basis. Resource Recovery Capstone MicroTurbine models are available that use methane-based oilfield flare casing gas or low-energy (as low as 350 Btu) landfill/digester gas as fuel sources. Versions of these are available that can accept Sour Gas with up to 7% Hydrogen Sulfide (H2S) content. This application helps eliminate pollution and provides economical power for on-site use as a by-product. Where waste gas incineration is a priority, the non-recuperated Simple Cycle model provides the same electrical output while destroying twice the gas volume. Combined Heat and Power The dry, oxygen-rich exhaust from the MicroTurbine can also be used for direct heat or as an air pre-heater for downstream burners. This allows restaurants and other commercial businesses to combine their need for electricity with the co-generation of heat. The oxygen-rich exhaust together with ultra-low emissions makes the direct exhaust applicable for some food processing and greenhouse uses, such as heating, cooling (by absorption), dehumidifying, baking, or drying. OEM Applications The MicroTurbine core technology can be integrated into a wide variety of products and systems. Uninterruptible power supplies, all-in-one combined heat and power systems, and welding machines are just a few examples of original equipment manufacturer applications. Output Measurements The measurements presented in this document are in metric units (with U.S. standard units in parentheses). Refer to the sections below for more data. ISO Conditions Combustion turbine powered devices (including the Capstone MicroTurbine) are typically rated at 15 °C (59 °F) at sea level, or 1 atmosphere (1 atm) which is 760 mm Hg (14.696 psia) and identified as International Standardization Organization (ISO) conditions. For a complete definition of ISO testing conditions, refer to ISO 3977-2. Pressure Pressure figures assume gauge pressure, or 1 standard atmosphere (1 atm) 760 mm Hg (14.696 psia) less than absolute pressure, unless otherwise indicated. 400001-001 Rev A (July 2002) Page 15 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
