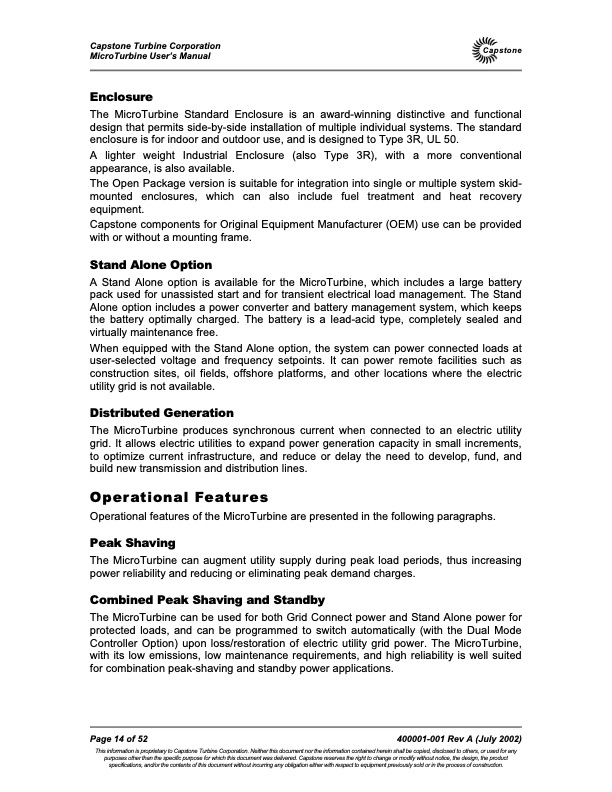

Text from PDF Page: 014
Capstone Turbine Corporation MicroTurbine Userís Manual Enclosure Capstone The MicroTurbine Standard Enclosure is an award-winning distinctive and functional design that permits side-by-side installation of multiple individual systems. The standard enclosure is for indoor and outdoor use, and is designed to Type 3R, UL 50. A lighter weight Industrial Enclosure (also Type 3R), with a more conventional appearance, is also available. The Open Package version is suitable for integration into single or multiple system skid- mounted enclosures, which can also include fuel treatment and heat recovery equipment. Capstone components for Original Equipment Manufacturer (OEM) use can be provided with or without a mounting frame. Stand Alone Option A Stand Alone option is available for the MicroTurbine, which includes a large battery pack used for unassisted start and for transient electrical load management. The Stand Alone option includes a power converter and battery management system, which keeps the battery optimally charged. The battery is a lead-acid type, completely sealed and virtually maintenance free. When equipped with the Stand Alone option, the system can power connected loads at user-selected voltage and frequency setpoints. It can power remote facilities such as construction sites, oil fields, offshore platforms, and other locations where the electric utility grid is not available. Distributed Generation The MicroTurbine produces synchronous current when connected to an electric utility grid. It allows electric utilities to expand power generation capacity in small increments, to optimize current infrastructure, and reduce or delay the need to develop, fund, and build new transmission and distribution lines. Operational Features Operational features of the MicroTurbine are presented in the following paragraphs. Peak Shaving The MicroTurbine can augment utility supply during peak load periods, thus increasing power reliability and reducing or eliminating peak demand charges. Combined Peak Shaving and Standby The MicroTurbine can be used for both Grid Connect power and Stand Alone power for protected loads, and can be programmed to switch automatically (with the Dual Mode Controller Option) upon loss/restoration of electric utility grid power. The MicroTurbine, with its low emissions, low maintenance requirements, and high reliability is well suited for combination peak-shaving and standby power applications. Page 14 of 52 400001-001 Rev A (July 2002) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
