PDF Publication Title:
Text from PDF Page: 038

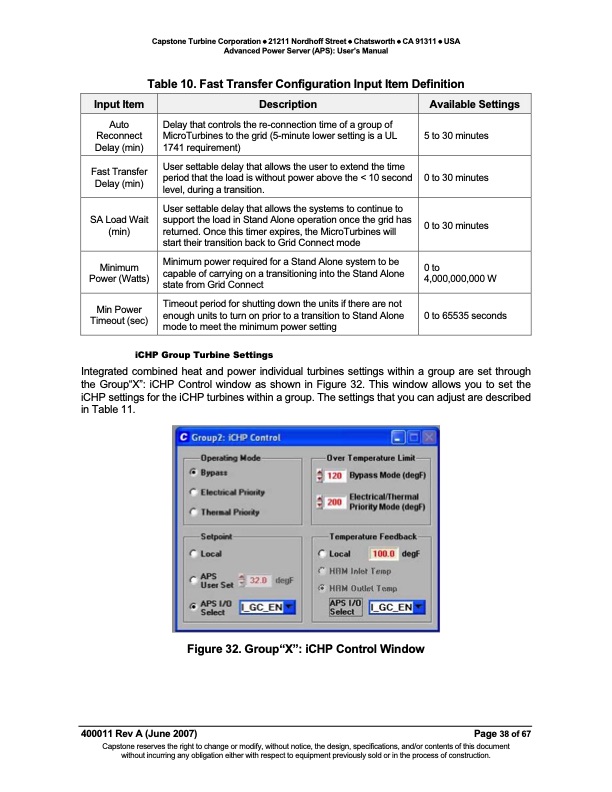

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Table 10. Fast Transfer Configuration Input Item Definition Input Item Description Available Settings Auto Reconnect Delay (min) Delay that controls the re-connection time of a group of MicroTurbines to the grid (5-minute lower setting is a UL 1741 requirement) 5 to 30 minutes Fast Transfer Delay (min) User settable delay that allows the user to extend the time period that the load is without power above the < 10 second level, during a transition. 0 to 30 minutes SA Load Wait (min) User settable delay that allows the systems to continue to support the load in Stand Alone operation once the grid has returned. Once this timer expires, the MicroTurbines will start their transition back to Grid Connect mode 0 to 30 minutes Minimum Power (Watts) Minimum power required for a Stand Alone system to be capable of carrying on a transitioning into the Stand Alone state from Grid Connect 0to 4,000,000,000 W Min Power Timeout (sec) Timeout period for shutting down the units if there are not enough units to turn on prior to a transition to Stand Alone mode to meet the minimum power setting 0 to 65535 seconds iCHP Group Turbine Settings Integrated combined heat and power individual turbines settings within a group are set through the Group“X”: iCHP Control window as shown in Figure 32. This window allows you to set the iCHP settings for the iCHP turbines within a group. The settings that you can adjust are described in Table 11. Figure 32. Group“X”: iCHP Control Window 400011 Rev A (June 2007) Page 38 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
PDF Search Title:
ADVANCED POWER SERVER (APS) USER’S MANUALOriginal File Name Searched:
400011_APS_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
