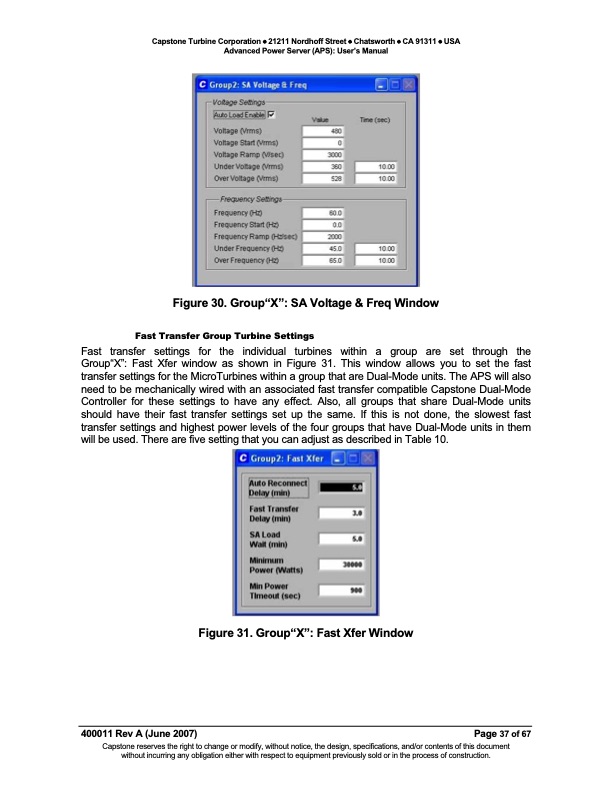

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 30. Group“X”: SA Voltage & Freq Window Fast Transfer Group Turbine Settings Fast transfer settings for the individual turbines within a group are set through the Group“X”: Fast Xfer window as shown in Figure 31. This window allows you to set the fast transfer settings for the MicroTurbines within a group that are Dual-Mode units. The APS will also need to be mechanically wired with an associated fast transfer compatible Capstone Dual-Mode Controller for these settings to have any effect. Also, all groups that share Dual-Mode units should have their fast transfer settings set up the same. If this is not done, the slowest fast transfer settings and highest power levels of the four groups that have Dual-Mode units in them will be used. There are five setting that you can adjust as described in Table 10. 400011 Rev A (June 2007) Page 37 of 67 Figure 31. Group“X”: Fast Xfer Window Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
