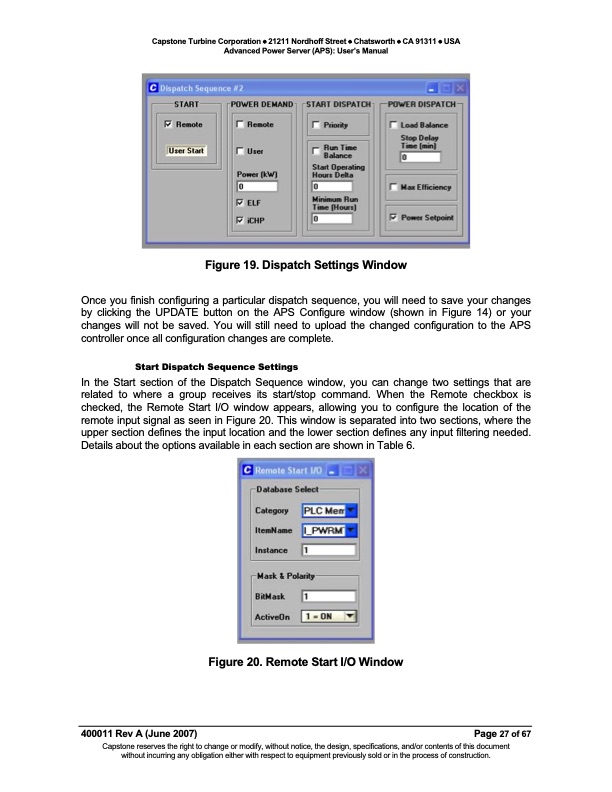

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 19. Dispatch Settings Window Once you finish configuring a particular dispatch sequence, you will need to save your changes by clicking the UPDATE button on the APS Configure window (shown in Figure 14) or your changes will not be saved. You will still need to upload the changed configuration to the APS controller once all configuration changes are complete. Start Dispatch Sequence Settings In the Start section of the Dispatch Sequence window, you can change two settings that are related to where a group receives its start/stop command. When the Remote checkbox is checked, the Remote Start I/O window appears, allowing you to configure the location of the remote input signal as seen in Figure 20. This window is separated into two sections, where the upper section defines the input location and the lower section defines any input filtering needed. Details about the options available in each section are shown in Table 6. 400011 Rev A (June 2007) Page 27 of 67 Figure 20. Remote Start I/O Window Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
