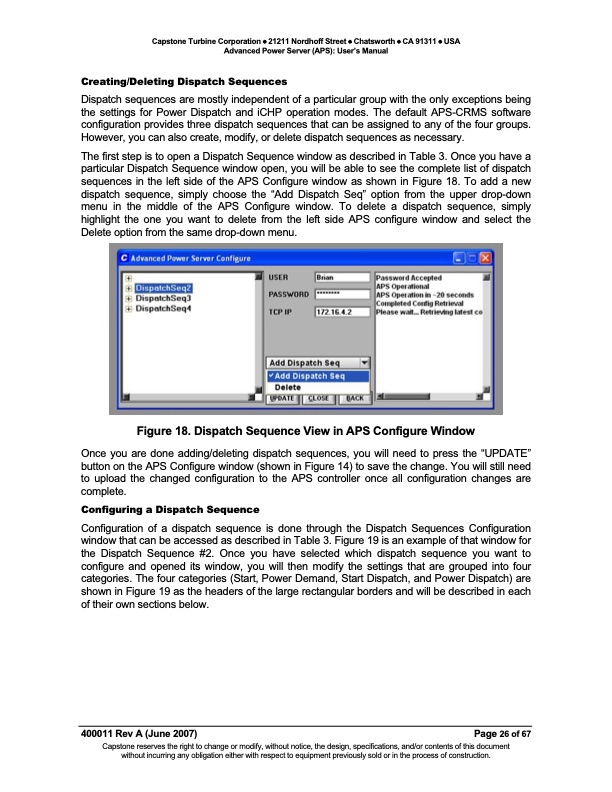

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Creating/Deleting Dispatch Sequences Dispatch sequences are mostly independent of a particular group with the only exceptions being the settings for Power Dispatch and iCHP operation modes. The default APS-CRMS software configuration provides three dispatch sequences that can be assigned to any of the four groups. However, you can also create, modify, or delete dispatch sequences as necessary. The first step is to open a Dispatch Sequence window as described in Table 3. Once you have a particular Dispatch Sequence window open, you will be able to see the complete list of dispatch sequences in the left side of the APS Configure window as shown in Figure 18. To add a new dispatch sequence, simply choose the “Add Dispatch Seq” option from the upper drop-down menu in the middle of the APS Configure window. To delete a dispatch sequence, simply highlight the one you want to delete from the left side APS configure window and select the Delete option from the same drop-down menu. Figure 18. Dispatch Sequence View in APS Configure Window Once you are done adding/deleting dispatch sequences, you will need to press the “UPDATE” button on the APS Configure window (shown in Figure 14) to save the change. You will still need to upload the changed configuration to the APS controller once all configuration changes are complete. Configuring a Dispatch Sequence Configuration of a dispatch sequence is done through the Dispatch Sequences Configuration window that can be accessed as described in Table 3. Figure 19 is an example of that window for the Dispatch Sequence #2. Once you have selected which dispatch sequence you want to configure and opened its window, you will then modify the settings that are grouped into four categories. The four categories (Start, Power Demand, Start Dispatch, and Power Dispatch) are shown in Figure 19 as the headers of the large rectangular borders and will be described in each of their own sections below. 400011 Rev A (June 2007) Page 26 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
