PDF Publication Title:

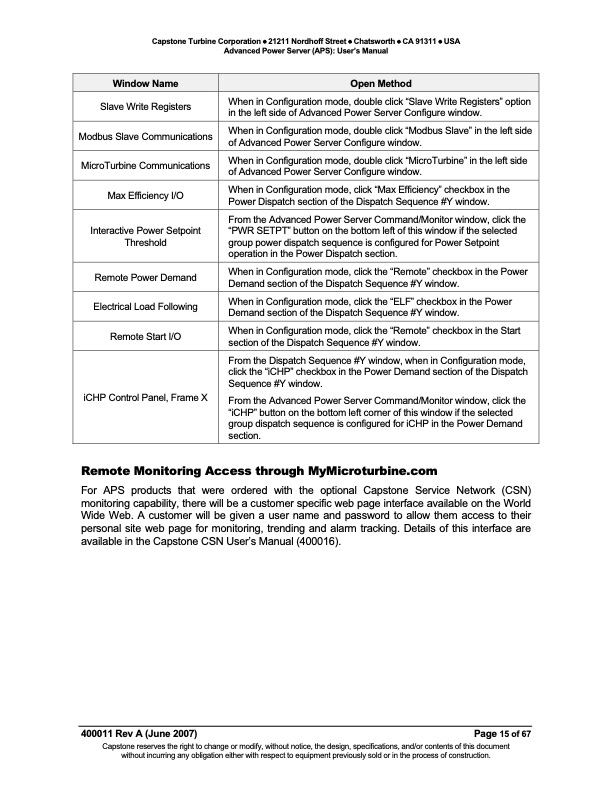

Text from PDF Page: 015
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Window Name Open Method Slave Write Registers Modbus Slave Communications MicroTurbine Communications Max Efficiency I/O Remote Power Demand Electrical Load Following Remote Start I/O When in Configuration mode, double click “Slave Write Registers” option in the left side of Advanced Power Server Configure window. When in Configuration mode, double click “Modbus Slave” in the left side of Advanced Power Server Configure window. When in Configuration mode, double click “MicroTurbine” in the left side of Advanced Power Server Configure window. When in Configuration mode, click “Max Efficiency” checkbox in the Power Dispatch section of the Dispatch Sequence #Y window. When in Configuration mode, click the “Remote” checkbox in the Power Demand section of the Dispatch Sequence #Y window. When in Configuration mode, click the “ELF” checkbox in the Power Demand section of the Dispatch Sequence #Y window. When in Configuration mode, click the “Remote” checkbox in the Start section of the Dispatch Sequence #Y window. Interactive Power Setpoint Threshold From the Advanced Power Server Command/Monitor window, click the “PWR SETPT” button on the bottom left of this window if the selected group power dispatch sequence is configured for Power Setpoint operation in the Power Dispatch section. iCHP Control Panel, Frame X From the Dispatch Sequence #Y window, when in Configuration mode, click the “iCHP” checkbox in the Power Demand section of the Dispatch Sequence #Y window. From the Advanced Power Server Command/Monitor window, click the “iCHP” button on the bottom left corner of this window if the selected group dispatch sequence is configured for iCHP in the Power Demand section. Remote Monitoring Access through MyMicroturbine.com For APS products that were ordered with the optional Capstone Service Network (CSN) monitoring capability, there will be a customer specific web page interface available on the World Wide Web. A customer will be given a user name and password to allow them access to their personal site web page for monitoring, trending and alarm tracking. Details of this interface are available in the Capstone CSN User’s Manual (400016). 400011 Rev A (June 2007) Page 15 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
PDF Search Title:
ADVANCED POWER SERVER (APS) USER’S MANUALOriginal File Name Searched:
400011_APS_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
