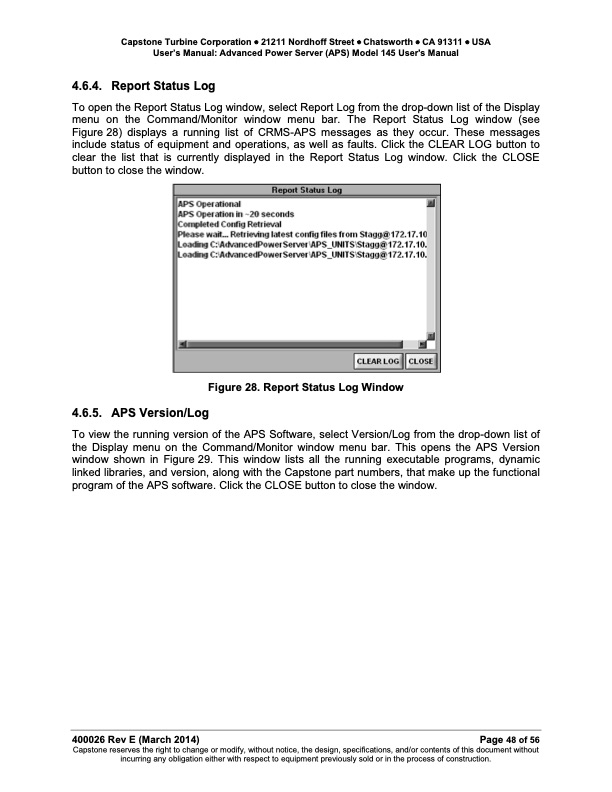

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual 4.6.4. Report Status Log To open the Report Status Log window, select Report Log from the drop-down list of the Display menu on the Command/Monitor window menu bar. The Report Status Log window (see Figure 28) displays a running list of CRMS-APS messages as they occur. These messages include status of equipment and operations, as well as faults. Click the CLEAR LOG button to clear the list that is currently displayed in the Report Status Log window. Click the CLOSE button to close the window. Figure 28. Report Status Log Window 4.6.5. APS Version/Log To view the running version of the APS Software, select Version/Log from the drop-down list of the Display menu on the Command/Monitor window menu bar. This opens the APS Version window shown in Figure 29. This window lists all the running executable programs, dynamic linked libraries, and version, along with the Capstone part numbers, that make up the functional program of the APS software. Click the CLOSE button to close the window. 400026 Rev E (March 2014) Page 48 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
