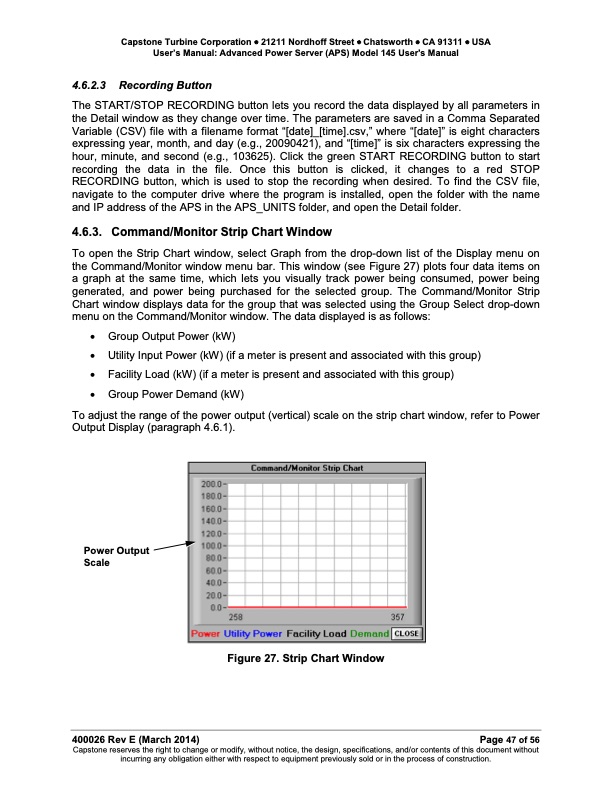

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual 4.6.2.3 Recording Button The START/STOP RECORDING button lets you record the data displayed by all parameters in the Detail window as they change over time. The parameters are saved in a Comma Separated Variable (CSV) file with a filename format “[date]_[time].csv,” where “[date]” is eight characters expressing year, month, and day (e.g., 20090421), and “[time]” is six characters expressing the hour, minute, and second (e.g., 103625). Click the green START RECORDING button to start recording the data in the file. Once this button is clicked, it changes to a red STOP RECORDING button, which is used to stop the recording when desired. To find the CSV file, navigate to the computer drive where the program is installed, open the folder with the name and IP address of the APS in the APS_UNITS folder, and open the Detail folder. 4.6.3. Command/Monitor Strip Chart Window To open the Strip Chart window, select Graph from the drop-down list of the Display menu on the Command/Monitor window menu bar. This window (see Figure 27) plots four data items on a graph at the same time, which lets you visually track power being consumed, power being generated, and power being purchased for the selected group. The Command/Monitor Strip Chart window displays data for the group that was selected using the Group Select drop-down menu on the Command/Monitor window. The data displayed is as follows: • Group Output Power (kW) • Utility Input Power (kW) (if a meter is present and associated with this group) • Facility Load (kW) (if a meter is present and associated with this group) • Group Power Demand (kW) To adjust the range of the power output (vertical) scale on the strip chart window, refer to Power Output Display (paragraph 4.6.1). Power Output Scale 400026 Rev E (March 2014) Page 47 of 56 Figure 27. Strip Chart Window Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
