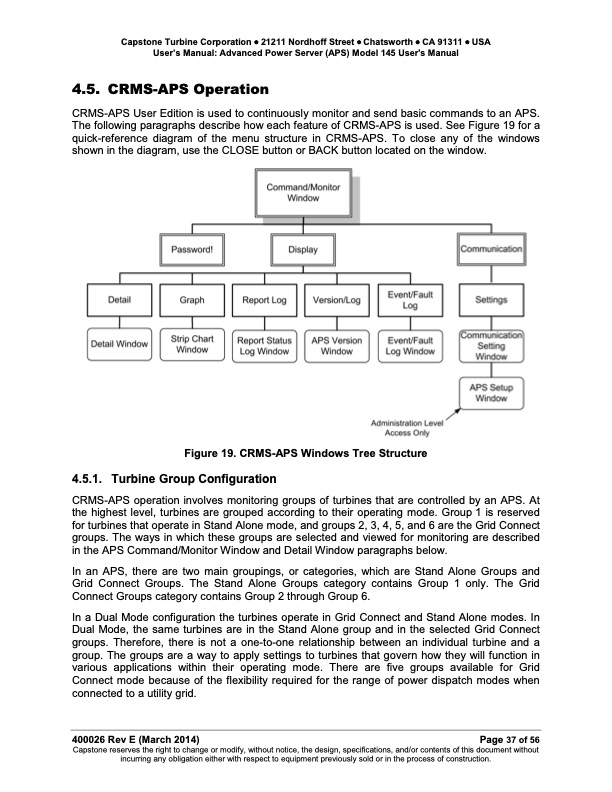

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual 4.5. CRMS-APS Operation CRMS-APS User Edition is used to continuously monitor and send basic commands to an APS. The following paragraphs describe how each feature of CRMS-APS is used. See Figure 19 for a quick-reference diagram of the menu structure in CRMS-APS. To close any of the windows shown in the diagram, use the CLOSE button or BACK button located on the window. Figure 19. CRMS-APS Windows Tree Structure 4.5.1. Turbine Group Configuration CRMS-APS operation involves monitoring groups of turbines that are controlled by an APS. At the highest level, turbines are grouped according to their operating mode. Group 1 is reserved for turbines that operate in Stand Alone mode, and groups 2, 3, 4, 5, and 6 are the Grid Connect groups. The ways in which these groups are selected and viewed for monitoring are described in the APS Command/Monitor Window and Detail Window paragraphs below. In an APS, there are two main groupings, or categories, which are Stand Alone Groups and Grid Connect Groups. The Stand Alone Groups category contains Group 1 only. The Grid Connect Groups category contains Group 2 through Group 6. In a Dual Mode configuration the turbines operate in Grid Connect and Stand Alone modes. In Dual Mode, the same turbines are in the Stand Alone group and in the selected Grid Connect groups. Therefore, there is not a one-to-one relationship between an individual turbine and a group. The groups are a way to apply settings to turbines that govern how they will function in various applications within their operating mode. There are five groups available for Grid Connect mode because of the flexibility required for the range of power dispatch modes when connected to a utility grid. 400026 Rev E (March 2014) Page 37 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
