Text from PDF Page: 036

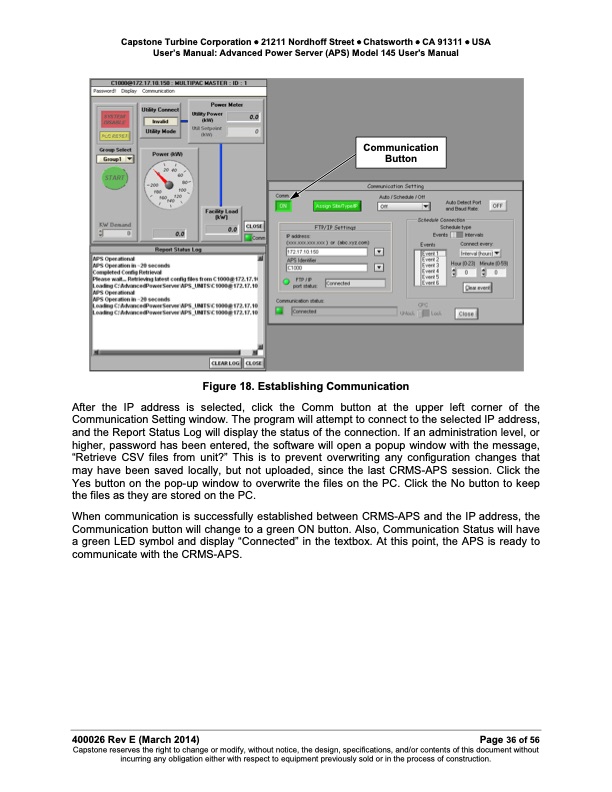

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual Figure 18. Establishing Communication After the IP address is selected, click the Comm button at the upper left corner of the Communication Setting window. The program will attempt to connect to the selected IP address, and the Report Status Log will display the status of the connection. If an administration level, or higher, password has been entered, the software will open a popup window with the message, “Retrieve CSV files from unit?” This is to prevent overwriting any configuration changes that may have been saved locally, but not uploaded, since the last CRMS-APS session. Click the Yes button on the pop-up window to overwrite the files on the PC. Click the No button to keep the files as they are stored on the PC. When communication is successfully established between CRMS-APS and the IP address, the Communication button will change to a green ON button. Also, Communication Status will have a green LED symbol and display “Connected” in the textbox. At this point, the APS is ready to communicate with the CRMS-APS. Communication Button 400026 Rev E (March 2014) Page 36 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
PDF Search Title:
Advanced Power Server (APS) Model 145 User's ManualOriginal File Name Searched:
400026E_UM_APS-145.pdfDIY PDF Search: Google It | Yahoo | Bing
