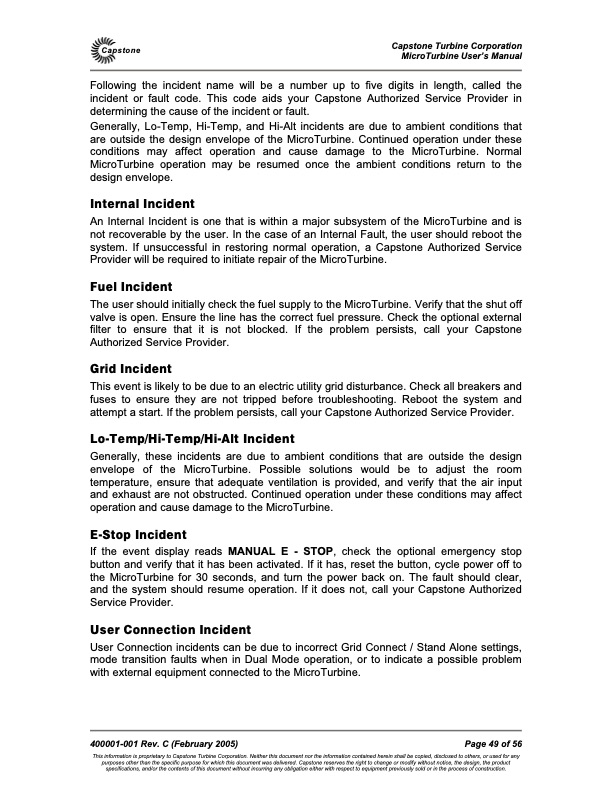

Capstone Capstone Turbine Corporation MicroTurbine User’s Manual Following the incident name will be a number up to five digits in length, called the incident or fault code. This code aids your Capstone Authorized Service Provider in determining the cause of the incident or fault. Generally, Lo-Temp, Hi-Temp, and Hi-Alt incidents are due to ambient conditions that are outside the design envelope of the MicroTurbine. Continued operation under these conditions may affect operation and cause damage to the MicroTurbine. Normal MicroTurbine operation may be resumed once the ambient conditions return to the design envelope. Internal Incident An Internal Incident is one that is within a major subsystem of the MicroTurbine and is not recoverable by the user. In the case of an Internal Fault, the user should reboot the system. If unsuccessful in restoring normal operation, a Capstone Authorized Service Provider will be required to initiate repair of the MicroTurbine. Fuel Incident The user should initially check the fuel supply to the MicroTurbine. Verify that the shut off valve is open. Ensure the line has the correct fuel pressure. Check the optional external filter to ensure that it is not blocked. If the problem persists, call your Capstone Authorized Service Provider. Grid Incident This event is likely to be due to an electric utility grid disturbance. Check all breakers and fuses to ensure they are not tripped before troubleshooting. Reboot the system and attempt a start. If the problem persists, call your Capstone Authorized Service Provider. Lo-Temp/Hi-Temp/Hi-Alt Incident Generally, these incidents are due to ambient conditions that are outside the design envelope of the MicroTurbine. Possible solutions would be to adjust the room temperature, ensure that adequate ventilation is provided, and verify that the air input and exhaust are not obstructed. Continued operation under these conditions may affect operation and cause damage to the MicroTurbine. E-Stop Incident If the event display reads MANUAL E - STOP, check the optional emergency stop button and verify that it has been activated. If it has, reset the button, cycle power off to the MicroTurbine for 30 seconds, and turn the power back on. The fault should clear, and the system should resume operation. If it does not, call your Capstone Authorized Service Provider. User Connection Incident User Connection incidents can be due to incorrect Grid Connect / Stand Alone settings, mode transition faults when in Dual Mode operation, or to indicate a possible problem with external equipment connected to the MicroTurbine. 400001-001 Rev. C (February 2005) Page 49 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
