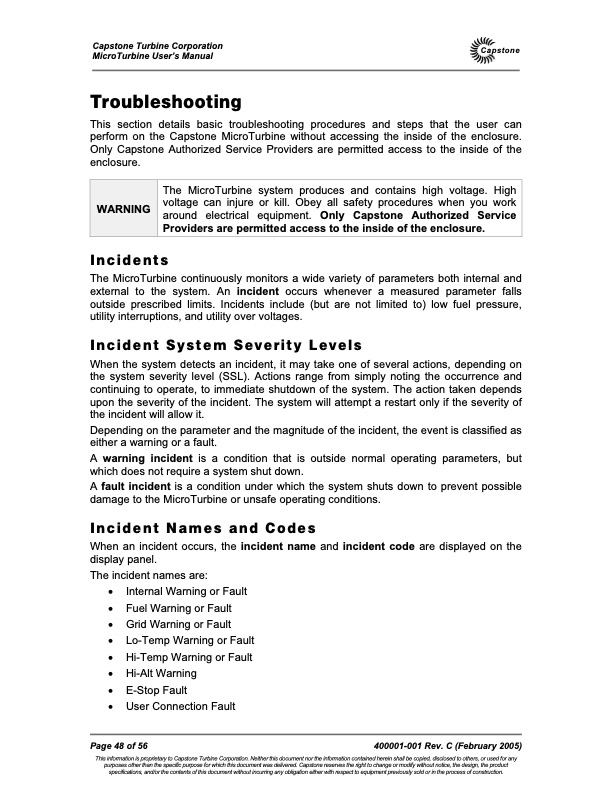

Capstone Turbine Corporation MicroTurbine User’s Manual Troubleshooting Capstone This section details basic troubleshooting procedures and steps that the user can perform on the Capstone MicroTurbine without accessing the inside of the enclosure. Only Capstone Authorized Service Providers are permitted access to the inside of the enclosure. Incidents The MicroTurbine continuously monitors a wide variety of parameters both internal and external to the system. An incident occurs whenever a measured parameter falls outside prescribed limits. Incidents include (but are not limited to) low fuel pressure, utility interruptions, and utility over voltages. Incident System Severity Levels When the system detects an incident, it may take one of several actions, depending on the system severity level (SSL). Actions range from simply noting the occurrence and continuing to operate, to immediate shutdown of the system. The action taken depends upon the severity of the incident. The system will attempt a restart only if the severity of the incident will allow it. Depending on the parameter and the magnitude of the incident, the event is classified as either a warning or a fault. A warning incident is a condition that is outside normal operating parameters, but which does not require a system shut down. A fault incident is a condition under which the system shuts down to prevent possible damage to the MicroTurbine or unsafe operating conditions. Incident Names and Codes When an incident occurs, the incident name and incident code are displayed on the display panel. WARNING The MicroTurbine system produces and contains high voltage. High voltage can injure or kill. Obey all safety procedures when you work around electrical equipment. Only Capstone Authorized Service Providers are permitted access to the inside of the enclosure. The incident names are: • Internal Warning or Fault • Fuel Warning or Fault • Grid Warning or Fault • Lo-Temp Warning or Fault • Hi-Temp Warning or Fault • Hi-Alt Warning • E-Stop Fault • User Connection Fault Page 48 of 56 400001-001 Rev. C (February 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
