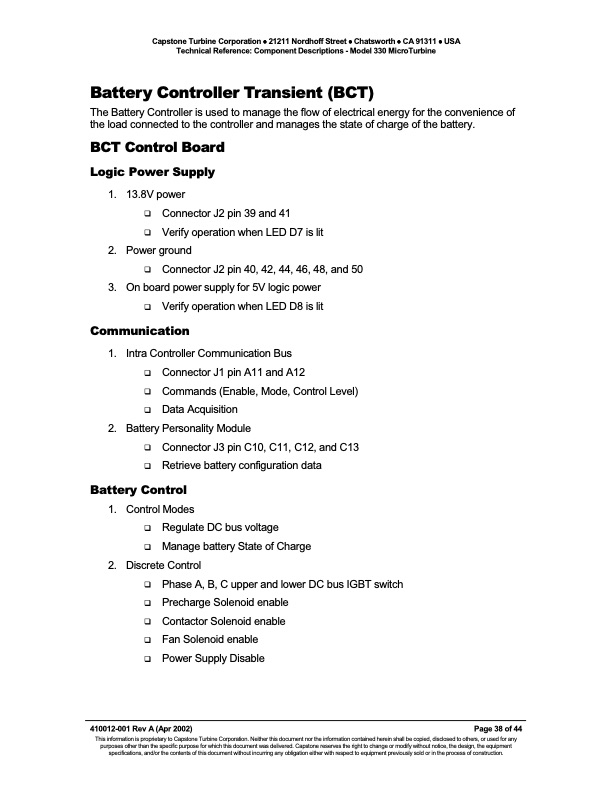

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Battery Controller Transient (BCT) The Battery Controller is used to manage the flow of electrical energy for the convenience of the load connected to the controller and manages the state of charge of the battery. BCT Control Board Logic Power Supply 13.8V power Connector J2 pin 39 and 41 Verify operation when LED D7 is lit 2. Power ground Connector J2 pin 40, 42, 44, 46, 48, and 50 3. On board power supply for 5V logic power Verify operation when LED D8 is lit Communication Intra Controller Communication Bus Connector J1 pin A11 and A12 Commands (Enable, Mode, Control Level) Data Acquisition 2. Battery Connector J3 pin C10, C11, C12, and C13 Retrieve battery configuration data Battery Control 1. Control Modes Regulate DC bus voltage Manage battery State of Charge 2. Discrete Control Phase A, B, C upper and lower DC bus IGBT switch Precharge Solenoid enable Contactor Solenoid enable Fan Solenoid enable Power Supply Disable 410012-001 Rev A (Apr 2002) Personality Module This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 38 of 44PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
