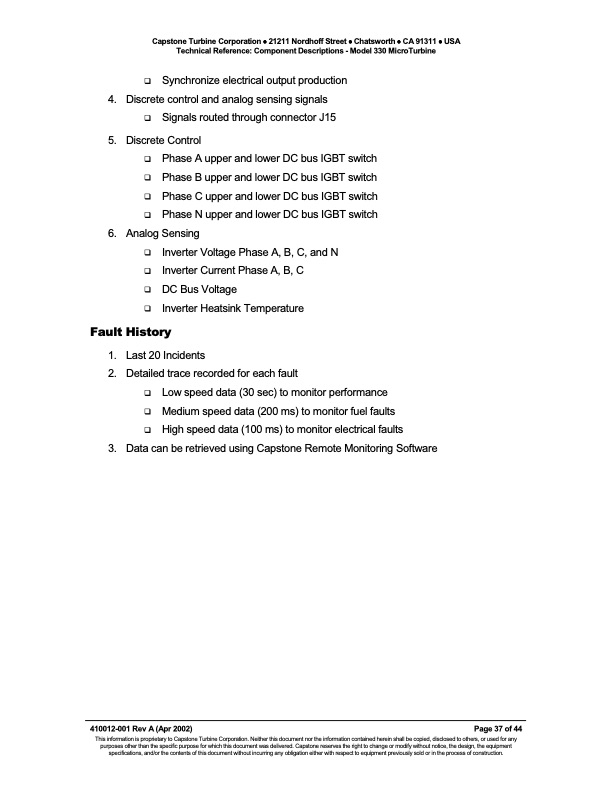

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Synchronize electrical output production 4. Discrete control and analog sensing signals Signals routed through connector J15 Discrete Control Phase A upper and lower DC bus IGBT switch Phase B upper and lower DC bus IGBT switch Phase C upper and lower DC bus IGBT switch Phase N upper and lower DC bus IGBT switch 6. Analog Inverter Voltage Phase A, B, C, and N Inverter Current Phase A, B, C DC Bus Voltage Inverter Heatsink Temperature Fault History Last 20 Incidents 2. Detailed trace recorded for each fault Low speed data (30 sec) to monitor performance Medium speed data (200 ms) to monitor fuel faults High speed data (100 ms) to monitor electrical faults 3. Data can be retrieved using Capstone Remote Monitoring Software Sensing 410012-001 Rev A (Apr 2002) Page 37 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
