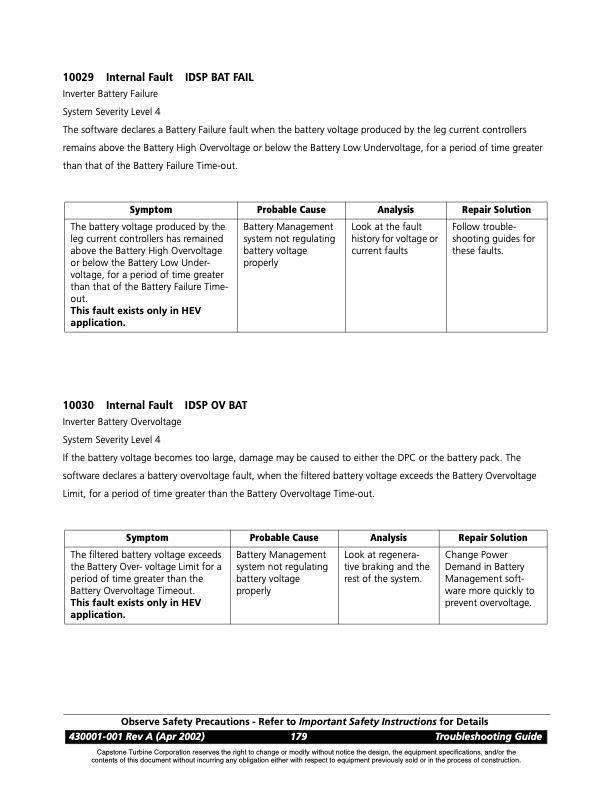

10029 Internal Fault IDSP BAT FAIL Inverter Battery Failure System Severity Level 4 The software declares a Battery Failure fault when the battery voltage produced by the leg current controllers remains above the Battery High Overvoltage or below the Battery Low Undervoltage, for a period of time greater than that of the Battery Failure Time-out. Symptom Probable Cause Analysis Repair Solution The battery voltage produced by the leg current controllers has remained above the Battery High Overvoltage or below the Battery Low Under- voltage, for a period of time greater than that of the Battery Failure Time- out. This fault exists only in HEV application. Battery Management system not regulating battery voltage properly Look at the fault history for voltage or current faults Follow trouble- shooting guides for these faults. 10030 Internal Fault IDSP OV BAT Inverter Battery Overvoltage System Severity Level 4 If the battery voltage becomes too large, damage may be caused to either the DPC or the battery pack. The software declares a battery overvoltage fault, when the filtered battery voltage exceeds the Battery Overvoltage Limit, for a period of time greater than the Battery Overvoltage Time-out. Symptom Probable Cause Analysis Repair Solution The filtered battery voltage exceeds the Battery Over- voltage Limit for a period of time greater than the Battery Overvoltage Timeout. This fault exists only in HEV application. Battery Management system not regulating battery voltage properly Look at regenera- tive braking and the rest of the system. Change Power Demand in Battery Management soft- ware more quickly to prevent overvoltage. Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 179 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
