PDF Publication Title:
Text from PDF Page: 042

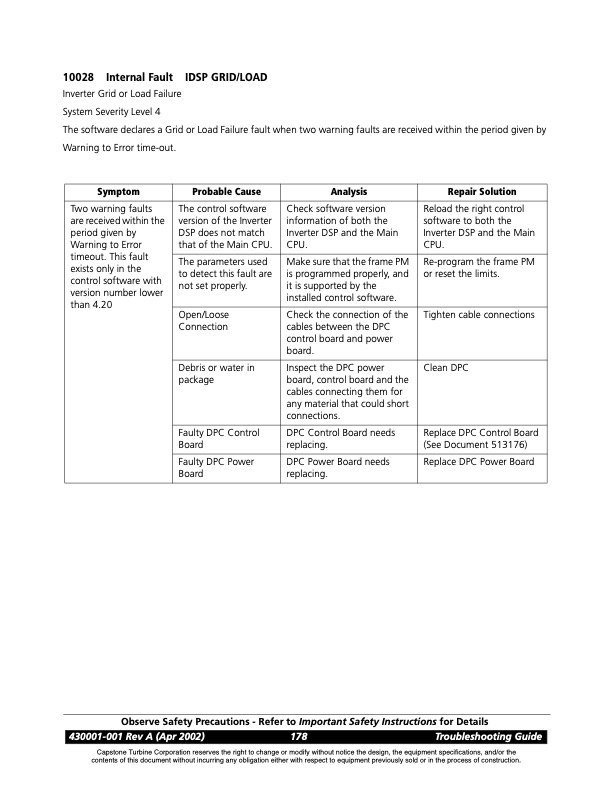

10028 Internal Fault IDSP GRID/LOAD Inverter Grid or Load Failure System Severity Level 4 The software declares a Grid or Load Failure fault when two warning faults are received within the period given by Warning to Error time-out. Symptom Probable Cause Analysis Repair Solution Two warning faults are received within the period given by Warning to Error timeout. This fault exists only in the control software with version number lower than 4.20 The control software version of the Inverter DSP does not match that of the Main CPU. Check software version information of both the Inverter DSP and the Main CPU. Reload the right control software to both the Inverter DSP and the Main CPU. The parameters used to detect this fault are not set properly. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM or reset the limits. Open/Loose Connection Check the connection of the cables between the DPC control board and power board. Tighten cable connections Debris or water in package Inspect the DPC power board, control board and the cables connecting them for any material that could short connections. Clean DPC Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 178 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
