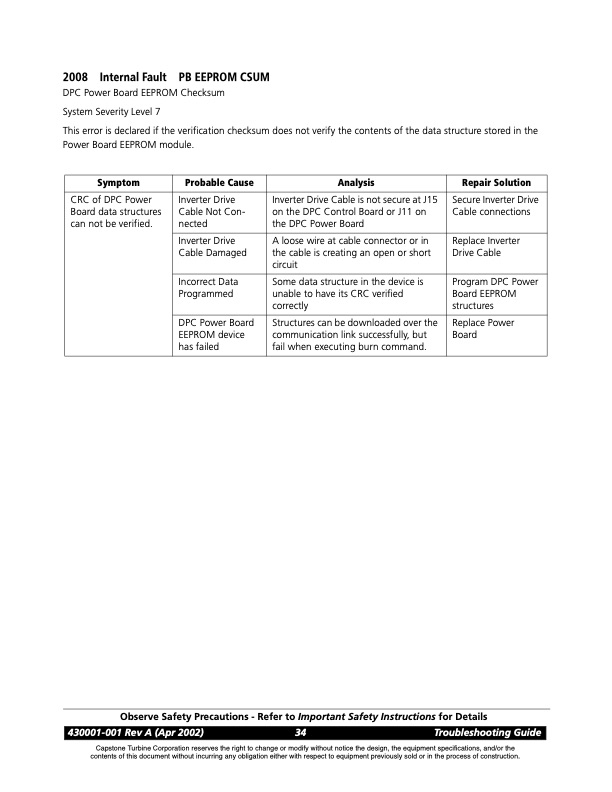

2008 Internal Fault PB EEPROM CSUM DPC Power Board EEPROM Checksum System Severity Level 7 This error is declared if the verification checksum does not verify the contents of the data structure stored in the Power Board EEPROM module. Symptom Probable Cause Analysis Repair Solution CRC of DPC Power Board data structures can not be verified. Inverter Drive Cable Not Con- nected Inverter Drive Cable is not secure at J15 on the DPC Control Board or J11 on the DPC Power Board Secure Inverter Drive Cable connections Inverter Drive Cable Damaged A loose wire at cable connector or in the cable is creating an open or short circuit Replace Inverter Drive Cable Incorrect Data Programmed Some data structure in the device is unable to have its CRC verified correctly Program DPC Power Board EEPROM structures DPC Power Board EEPROM device has failed Structures can be downloaded over the communication link successfully, but fail when executing burn command. Replace Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 34 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 1000 FAULT CODES Control Board Faults
