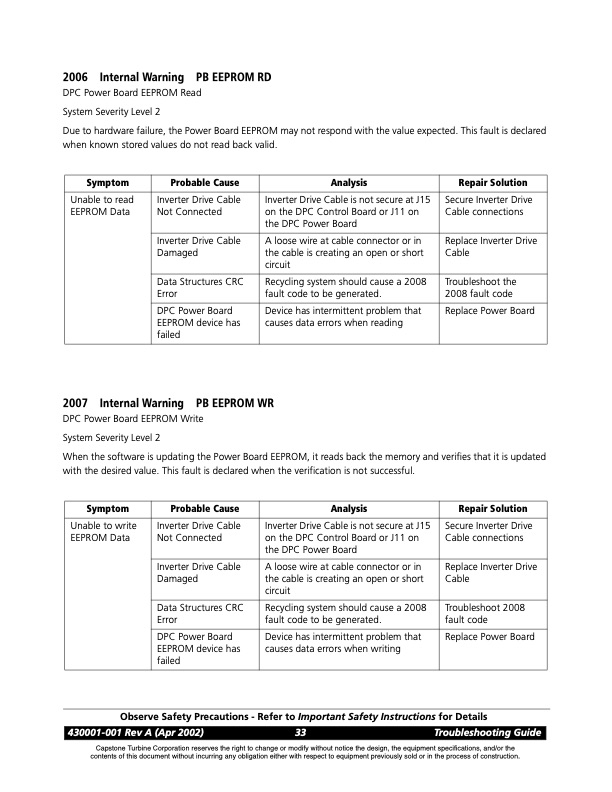

2006 Internal Warning PB EEPROM RD DPC Power Board EEPROM Read System Severity Level 2 Due to hardware failure, the Power Board EEPROM may not respond with the value expected. This fault is declared when known stored values do not read back valid. Symptom Probable Cause Analysis Repair Solution Unable to read EEPROM Data Inverter Drive Cable Not Connected Inverter Drive Cable is not secure at J15 on the DPC Control Board or J11 on the DPC Power Board Secure Inverter Drive Cable connections Inverter Drive Cable Damaged A loose wire at cable connector or in the cable is creating an open or short circuit Replace Inverter Drive Cable Data Structures CRC Error Recycling system should cause a 2008 fault code to be generated. Troubleshoot the 2008 fault code DPC Power Board EEPROM device has failed Device has intermittent problem that causes data errors when reading Replace Power Board 2007 Internal Warning PB EEPROM WR DPC Power Board EEPROM Write System Severity Level 2 When the software is updating the Power Board EEPROM, it reads back the memory and verifies that it is updated with the desired value. This fault is declared when the verification is not successful. Symptom Probable Cause Analysis Repair Solution Unable to write EEPROM Data Inverter Drive Cable Not Connected Inverter Drive Cable is not secure at J15 on the DPC Control Board or J11 on the DPC Power Board Secure Inverter Drive Cable connections Inverter Drive Cable Damaged A loose wire at cable connector or in the cable is creating an open or short circuit Replace Inverter Drive Cable Data Structures CRC Error Recycling system should cause a 2008 fault code to be generated. Troubleshoot 2008 fault code DPC Power Board EEPROM device has failed Device has intermittent problem that causes data errors when writing Replace Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 33 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 1000 FAULT CODES Control Board Faults
