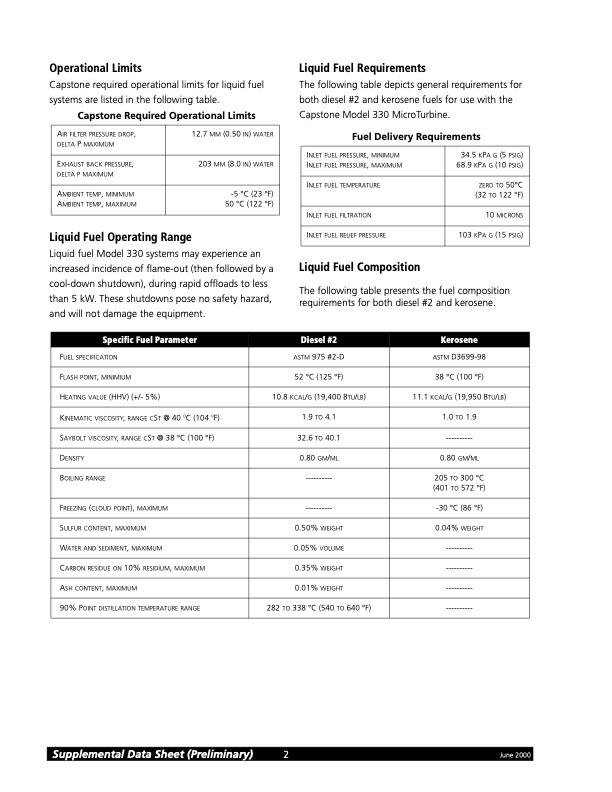

Operational Limits Capstone required operational limits for liquid fuel systems are listed in the following table. Capstone Required Operational Limits Liquid Fuel Operating Range Liquid fuel Model 330 systems may experience an increased incidence of flame-out (then followed by a cool-down shutdown), during rapid offloads to less than 5 kW. These shutdowns pose no safety hazard, and will not damage the equipment. Liquid Fuel Requirements The following table depicts general requirements for both diesel #2 and kerosene fuels for use with the Capstone Model 330 MicroTurbine. Fuel Delivery Requirements AIR FILTER PRESSURE DROP, DELTA P MAXIMUM 12.7 MM (0.50 IN) WATER EXHAUST BACK PRESSURE, DELTA P MAXIMUM 203 MM (8.0 IN) WATER AMBIENT TEMP, MINIMUM AMBIENT TEMP, MAXIMUM -5 °C (23 °F) 50 °C (122 °F) INLET FUEL PRESSURE, MINIMUM INLET FUEL PRESSURE, MAXIMUM 34.5 KPA G (5 PSIG) 68.9 KPA G (10 PSIG) INLET FUEL TEMPERATURE ZERO TO 50°C (32 TO 122 °F) INLET FUEL FILTRATION 10 MICRONS INLET FUEL RELIEF PRESSURE 103 KPA G (15 PSIG) Liquid Fuel Composition The following table presents the fuel composition requirements for both diesel #2 and kerosene. Specific Fuel Parameter Diesel #2 Kerosene FUEL SPECIFICATION ASTM 975 #2-D ASTM D3699-98 FLASH POINT, MINIMIUM 52 °C (125 °F) 38 °C (100 °F) HEATING VALUE (HHV) (+/- 5%) 10.8 KCAL/G (19,400 BTU/LB) 11.1 KCAL/G (19,950 BTU/LB) KINEMATIC VISCOSITY, RANGE CST @ 40 OC (104 OF) 1.9 TO 4.1 1.0 TO 1.9 SAYBOLT VISCOSITY, RANGE CST @ 38 °C (100 °F) 32.6 TO 40.1 ---------- DENSITY 0.80 GM/ML 0.80 GM/ML BOILING RANGE ---------- 205 TO 300 °C (401 TO 572 °F) FREEZING (CLOUD POINT), MAXIMUM ---------- -30 °C (86 °F) SULFUR CONTENT, MAXIMUM 0.50% WEIGHT 0.04% WEIGHT WATER AND SEDIMENT, MAXIMUM 0.05% VOLUME ---------- CARBON RESIDUE ON 10% RESIDIUM, MAXIMUM 0.35% WEIGHT ---------- ASH CONTENT, MAXIMUM 0.01% WEIGHT ---------- 90% POINT DISTILLATION TEMPERATURE RANGE 282 TO 338 °C (540 TO 640 °F) ---------- Supplemental Data Sheet (Preliminary) 2 June 2000PDF Image | Liquid Fuel Model 330
