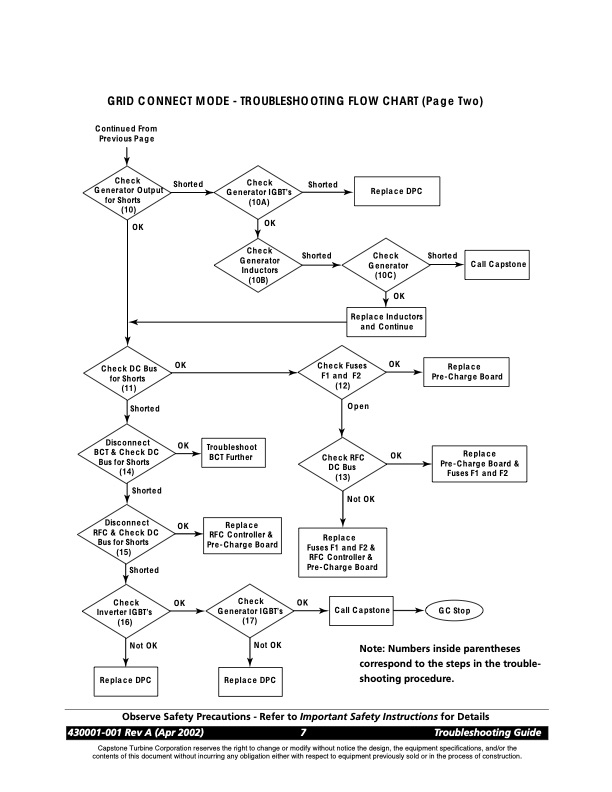

GRID CONNECT MODE - TROUBLESHOOTING FLOW CHART (Page Two) Continued From Previous Page Check Generator Output for Shorts (10) OK Shorted Check Generator IGBT’s (10A) OK Check Generator Inductors (10B) Shorted Shorted Replace DPC Check Generator (10C) OK OK OK Shorted Call Capstone Replace Inductors and Continue Check DC Bus for Shorts (11) Shorted Disconnect BCT & Check DC Bus for Shorts (14) OK OK OK Check Fuses F1 and F2 (12) Open Check RFC DC Bus (13) Replace Pre-Charge Board Troubleshoot BCT Further Replace Pre-Charge Board & Fuses F1 and F2 Shorted Not OK Disconnect RFC & Check DC Bus for Shorts (15) Shorted Replace RFC Controller & Pre-Charge Board Replace Fuses F1 and F2 & RFC Controller & Pre-Charge Board Check OK Inverter IGBT’s (16) Not OK Check OK Generator IGBT’s (17) Not OK GC Stop Call Capstone Replace DPC Replace DPC Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 7 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Note: Numbers inside parentheses correspond to the steps in the trouble- shooting procedure.PDF Image | CAPSTONE MICROTURBINE MODEL 330 TROUBLESHOOTING GUIDE
