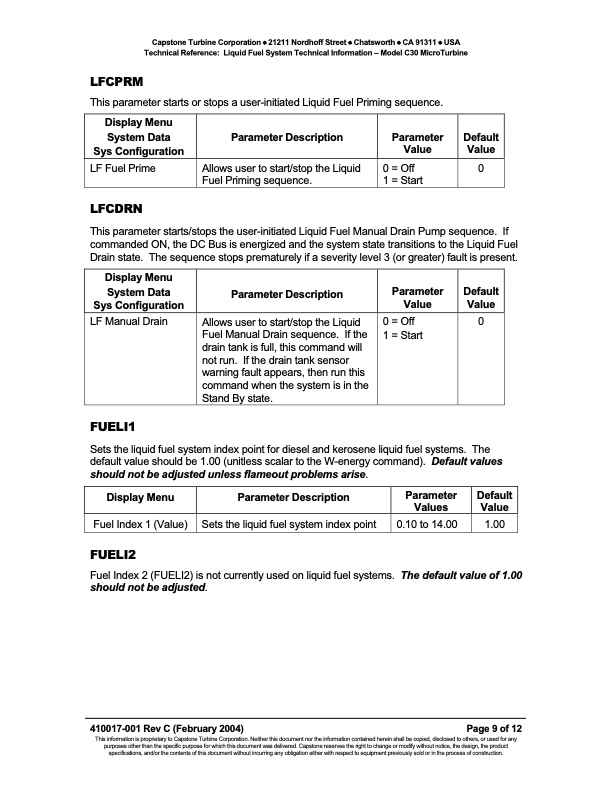

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Liquid Fuel System Technical Information – Model C30 MicroTurbine Default Value 0 LFCPRM This parameter starts or stops a user-initiated Liquid Fuel Priming sequence. Display Menu System Data Sys Configuration LF Fuel Prime LFCDRN Parameter Description Allows user to start/stop the Liquid Fuel Priming sequence. Parameter Value 0 = Off 1 = Start This parameter starts/stops the user-initiated Liquid Fuel Manual Drain Pump sequence. If commanded ON, the DC Bus is energized and the system state transitions to the Liquid Fuel Drain state. The sequence stops prematurely if a severity level 3 (or greater) fault is present. Display Menu System Data Parameter Description Parameter Default Sys Configuration Value Value FUELI1 Sets the liquid fuel system index point for diesel and kerosene liquid fuel systems. The default value should be 1.00 (unitless scalar to the W-energy command). Default values should not be adjusted unless flameout problems arise. LF Manual Drain Allows user to start/stop the Liquid Fuel Manual Drain sequence. If the drain tank is full, this command will not run. If the drain tank sensor warning fault appears, then run this command when the system is in the Stand By state. 0=Off 1 = Start 0 Display Menu Parameter Description Parameter Values Default Value 1.00 Fuel Index 1 (Value) Sets the liquid fuel system index point 0.10 to 14.00 FUELI2 Fuel Index 2 (FUELI2) is not currently used on liquid fuel systems. The default value of 1.00 should not be adjusted. 410017-001 Rev C (February 2004) Page 9 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine
