Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine

PDF Publication Title:

Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine ( technical-reference-liquid-fuel-system-technical-information )

Previous Page View | Next Page View | Return to Search List

Text from PDF Page: 008

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Liquid Fuel System Technical Information – Model C30 MicroTurbine Method 2 - CRMS Command Line The Initial Prime (LFCPRM) command may be manually entered through the CRMS Command Line screen. 1. Select the screen by selecting [Communication] [Command Line] at the MicroTurbine control panel screen. 2. Configure the software to recognize the installed boost pump by entering the sequence BSTPMP =1. Initiate the Initial Priming sequence by entering LFCPRM = 1. Method 3 - Display Panel NOTE Detailed explanation of the display panel is available in the Capstone MicroTurbine Users Manual (400001). To perform the priming sequence using the display panel, navigate through the four submenus to configure the MicroTurbine to recognize the boost pump and initiate the Liquid Fuel Priming sequence as follows: 1. Log on with a password (default is 87712370). All changes to system configuration require a user password. 2. Navigate to the top-level menu. 3. Navigate on line 2 to the submenu. 4. Navigate on line 3 to the option. 5. Select the option, and then press the button. 6. Navigate on line 3 to the option. 7. Select the option, and then press the button. The system is now configured. Verify system operation by initiating a command. RS-232 Control Commands This section summarizes the available RS-232 commands. The first three commands may be executed using the CRMS LF Priming Panel, CRMS Command Line or display panel. BSTPMP This parameter should be set to “1” to recognize installation of the integrated boost pump. Display Menu System Data Parameter Description Parameter Default Value Page 8 of 12 Sys Configuration 410017-001 Rev C (February 2004) Value LF Boost Pump Allows user to set the parameter for an installed Liquid Fuel Boost Pump on the MicroTurbine. 0 = Not Present 1 = Installed 0 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

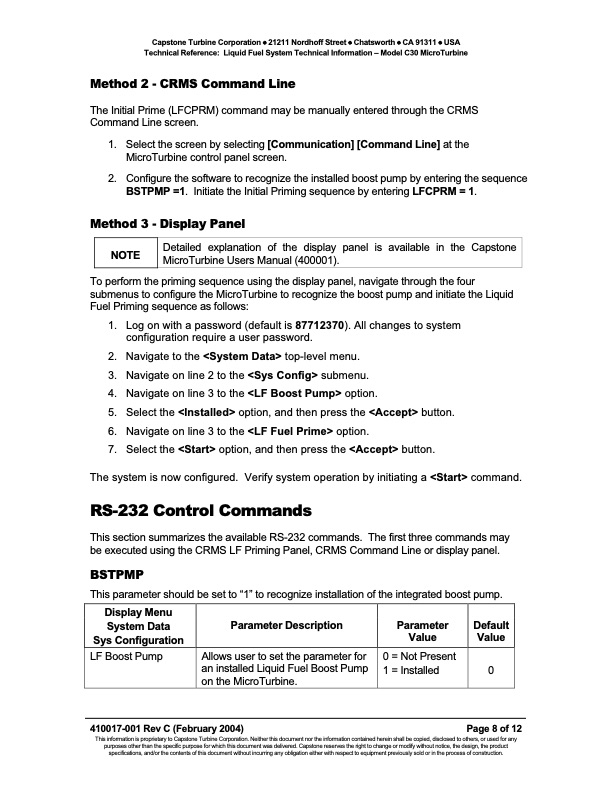

PDF Image | Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine

technical-reference-liquid-fuel-system-technical-information-008

PDF Search Title:

Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine

Original File Name Searched:

410017_ELOR_Tech_Ref.pdf
