PDF Publication Title:

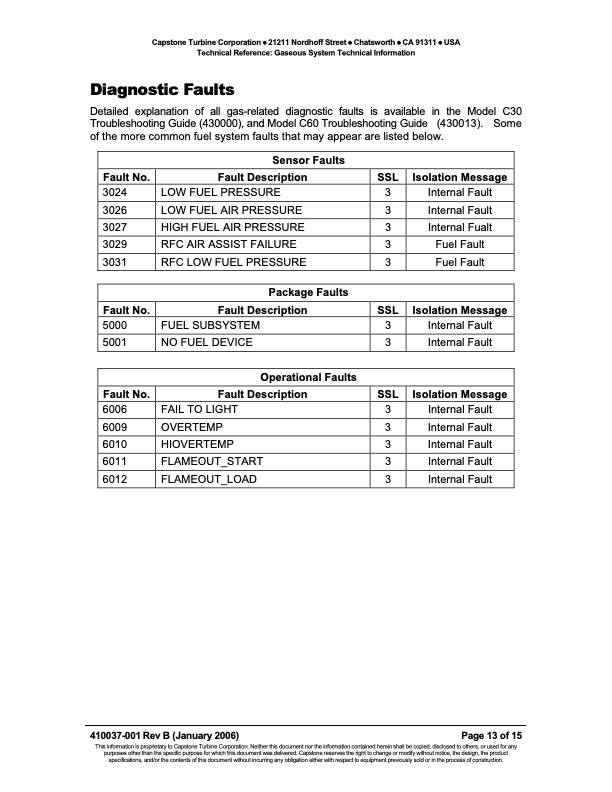

Text from PDF Page: 013
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Gaseous System Technical Information Diagnostic Faults Detailed explanation of all gas-related diagnostic faults is available in the Model C30 Troubleshooting Guide (430000), and Model C60 Troubleshooting Guide (430013). Some of the more common fuel system faults that may appear are listed below. Fault No. 3024 3026 3027 3029 3031 Fault No. 5000 5001 Fault No. 6006 6009 6010 6011 6012 Sensor Faults Fault Description SSL LOW FUEL PRESSURE 3 LOW FUEL AIR PRESSURE 3 HIGH FUEL AIR PRESSURE 3 RFC AIR ASSIST FAILURE 3 RFC LOW FUEL PRESSURE 3 Package Faults Fault Description SSL FUEL SUBSYSTEM 3 NO FUEL DEVICE 3 Operational Faults Fault Description SSL FAIL TO LIGHT 3 OVERTEMP 3 HIOVERTEMP 3 FLAMEOUT_START 3 FLAMEOUT_LOAD 3 Isolation Message Internal Fault Internal Fault Internal Fualt Fuel Fault Fuel Fault Isolation Message Internal Fault Internal Fault Isolation Message Internal Fault Internal Fault Internal Fault Internal Fault Internal Fault 410037-001 Rev B (January 2006) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change Page 13 of 15 shall be copied, disclosed to others, or used for any or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Gaseous System Technical Information
