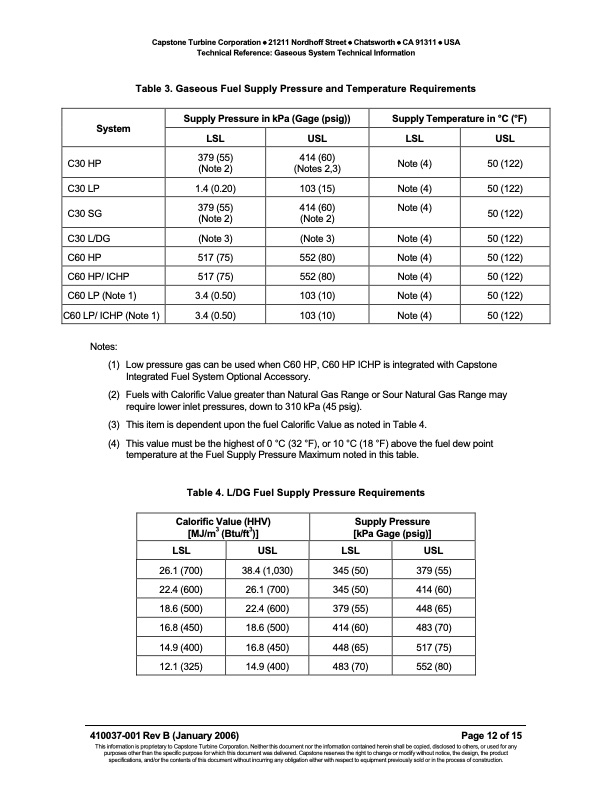

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Gaseous System Technical Information Table 3. Gaseous Fuel Supply Pressure and Temperature Requirements Supply Pressure in kPa (Gage (psig)) System C30 HP C30 LP C30 SG C30 L/DG C60 HP C60 HP/ ICHP C60 LP (Note 1) C60 LP/ ICHP (Note 1) Notes: LSL 379 (55) (Note 2) 1.4 (0.20) 379 (55) (Note 2) (Note 3) 517 (75) 517 (75) 3.4 (0.50) 3.4 (0.50) USL 414 (60) (Notes 2,3) 103 (15) 414 (60) (Note 2) (Note 3) 552 (80) 552 (80) 103 (10) 103 (10) Supply Temperature in °C (°F) LSL USL Note (4) Note (4) Note (4) Note (4) Note (4) Note (4) Note (4) Note (4) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) (1) LowpressuregascanbeusedwhenC60HP,C60HPICHPisintegratedwithCapstone Integrated Fuel System Optional Accessory. (2) FuelswithCalorificValuegreaterthanNaturalGasRangeorSourNaturalGasRangemay require lower inlet pressures, down to 310 kPa (45 psig). (3) ThisitemisdependentuponthefuelCalorificValueasnotedinTable4. (4) Thisvaluemustbethehighestof0°C(32°F),or10°C(18°F)abovethefueldewpoint temperature at the Fuel Supply Pressure Maximum noted in this table. Table 4. L/DG Fuel Supply Pressure Requirements Calorific Value (HHV) [MJ/m3 (Btu/ft3)] Supply Pressure [kPa Gage (psig)] LSL 26.1 (700) 22.4 (600) 18.6 (500) 16.8 (450) 14.9 (400) 12.1 (325) 410037-001 Rev B (January 2006) USL 38.4 (1,030) 26.1 (700) 22.4 (600) 18.6 (500) 16.8 (450) 14.9 (400) LSL 345 (50) 345 (50) 379 (55) 414 (60) 448 (65) 483 (70) USL 379 (55) 414 (60) 448 (65) 483 (70) 517 (75) 552 (80) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 12 of 15PDF Image | Technical Reference Gaseous System Technical Information
