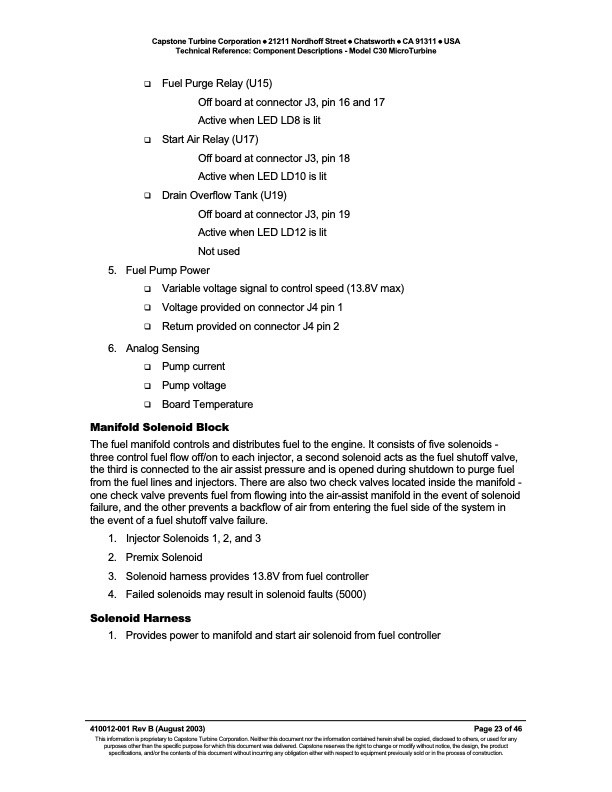

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C30 MicroTurbine FuelPurgeRelay(U15) Off board at connector J3, pin 16 and 17 Active when LED LD8 is lit StartAirRelay(U17) Off board at connector J3, pin 18 Active when LED LD10 is lit DrainOverflowTank(U19) Off board at connector J3, pin 19 Active when LED LD12 is lit Not used 5. Fuel Pump Power Variablevoltagesignaltocontrolspeed(13.8Vmax) VoltageprovidedonconnectorJ4pin1 ReturnprovidedonconnectorJ4pin2 6. Analog Sensing Pumpcurrent Pumpvoltage BoardTemperature Manifold Solenoid Block The fuel manifold controls and distributes fuel to the engine. It consists of five solenoids - three control fuel flow off/on to each injector, a second solenoid acts as the fuel shutoff valve, the third is connected to the air assist pressure and is opened during shutdown to purge fuel from the fuel lines and injectors. There are also two check valves located inside the manifold - one check valve prevents fuel from flowing into the air-assist manifold in the event of solenoid failure, and the other prevents a backflow of air from entering the fuel side of the system in the event of a fuel shutoff valve failure. 1. Injector Solenoids 1, 2, and 3 2. Premix Solenoid 3. Solenoid harness provides 13.8V from fuel controller 4. Failed solenoids may result in solenoid faults (5000) Solenoid Harness 1. Provides power to manifold and start air solenoid from fuel controller 410012-001 Rev B (August 2003) Page 23 of 46 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C30 MicroTurbine
